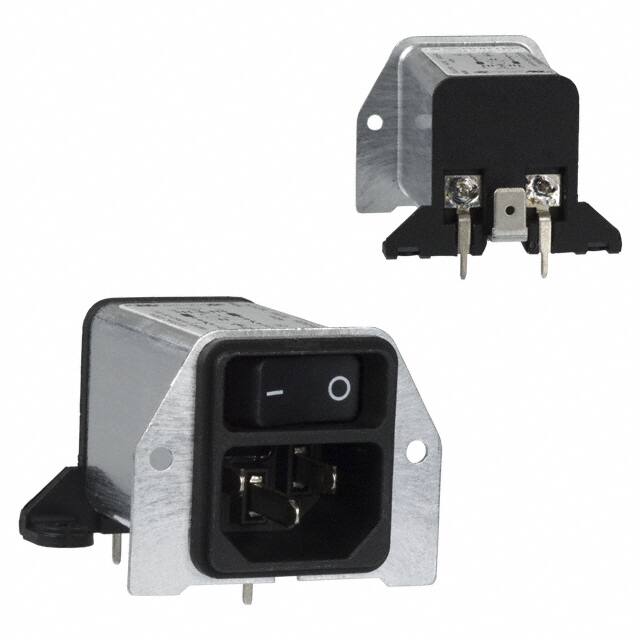

DC22.9121.111

Teknik Özellikler

Flammability Rating

UL94 V-0

Orientation

Right Angle

Akım

10A

Shell Material

THRMOPLASTIC

Housing Material

Thermoplastic

Direnç

1MOhm

Min. Çalışma Sıcaklığı

-25°C

Mil Conformance

NO

Pozisyon Sayısı

3

Voltage Rated Ac

125V

Parça Durumu

Active

Accomodates A Fuse

No

Total Number Of Contacts

3

Fabrika Tedarik Süresi

10 Weeks

Iec Conformance

YES

Material Flammability Rating

UL94 V-0

Max Voltage Rating Ac

250V

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Panel Mount, Flange; Through Hole

Voltage Rated Dc

250V

Seri

DC22

Switch Features

Switch On-Off

Throw Configuration

DPST

Ambalaj

Bulk

Din Conformance

NO

Voltageiec

250VAC

Montaj

Flanges, Panel, Screw, Through Hole

Panel Thickness

0.157 4.00mm

Terminal

Quick Connect - 0.250 (6.3mm)

Filter Type

Filtered (EMI, RFI) - Commercial

Kurşunsuz

Lead Free

Özellikler

Shielded

Number Of Ports

1

Maks. Çalışma Sıcaklığı

85°C

Max Current Rating

10A

Option

GENERAL PURPOSE

Connector Type

Receptacle, Male Blades - Module

Coupling Type

SNAP

Gender

Male

Number Of Poles

2
