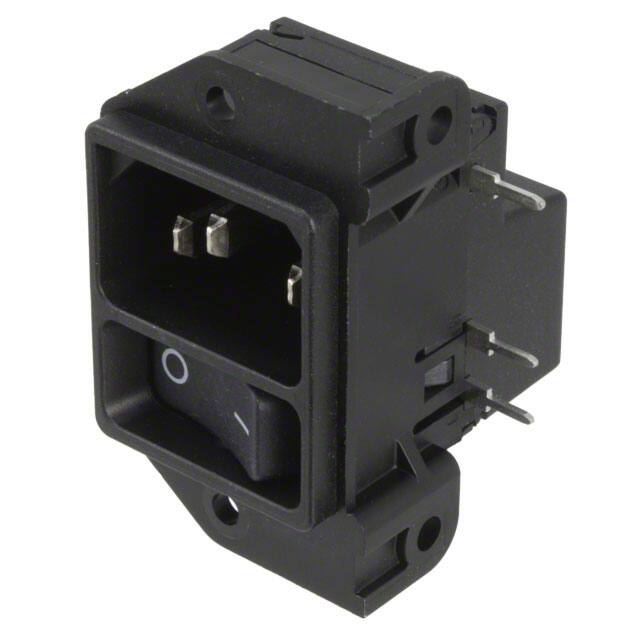

DC21.0021.1111

Teknik Özellikler

Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

Din Conformance

NO

Panel Cutout Dimensions

Rectangular - 34.00mm x 27.50mm

Min. Çalışma Sıcaklığı

-25°C

Montaj

Flanges, Panel, Screw, Through Hole

Uzunluk

52mm

Maks. Çalışma Sıcaklığı

70°C

Renk

Black

Number Of Ports

1

Max Current Rating

11A

Max Voltage Rating Ac

250V

Bodyshell Style

SOCKET

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Currentiec

10A

Accomodates A Fuse

No

Seri

DC21

Pozisyon Sayısı

3

Connector Type

Receptacle, Male Blades - Module

Terminal

Quick Connect - 0.189 (4.8mm)

Kılıf / Paket

Module

Iec Conformance

YES

Weight

28.349523g

Tip

Switch

Ingress Protection

IP40

Material Flammability Rating

UL94 V-0

Voltageiec

250VAC

Ambalaj

Bulk

Option

GENERAL PURPOSE

Voltage Rated Ac

250V

Reach Svhc

No SVHC

Switch Features

Switch On-Off

Gerilim

125V

RoHS Durumu

ROHS3 Compliant

Filter Type

Unfiltered - Commercial

Özellikler

Terminating Cover

Housing Material

Thermoplastic

Gender

Male

Depth

38.1mm

Connector Style

IEC 320-C14
