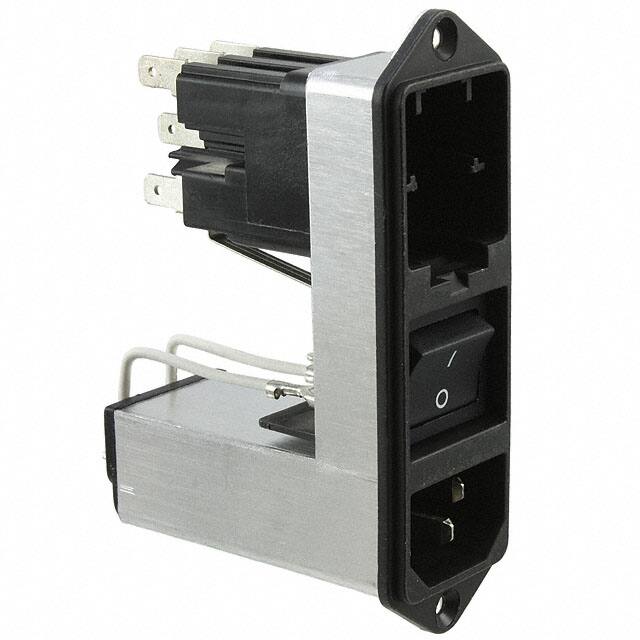

CGC0.6101.151

Teknik Özellikler

Radyasyon Dayanımı

No

Switch Features

Switch On-Off

Filter Type

Filtered (EMI, RFI) - Commercial, Medical

Connector Type

Receptacle, Male Blades - Module

Coupling Type

SNAP

Panel Cutout Dimensions

Rectangular - 28.50mm x 81.00mm

Akım

4A

Onay Kuruluşu

cULus, ENEC

Mil Conformance

NO

Max Current Rating

4A

Kılıf / Paket

Module

Ingress Protection

IP40

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk

Terminal

Quick Connect - 0.189 (4.8mm)

RoHS Durumu

ROHS3 Compliant

Min. Çalışma Sıcaklığı

-25°C

Max Voltage Rating Ac

250V

Din Conformance

NO

Shell Material

POLYETHYLENE

Maks. Çalışma Sıcaklığı

85°C

Connector Style

IEC 320-C14

Montaj Tipi

Panel Mount, Flange

Özellikler

Voltage Selector

Akım Değeri

4A

Seri

CG

Weight

92.999987g

Depth

69mm

Number Of Poles

2

Option

GENERAL PURPOSE

Number Of Ports

1

Iec Conformance

YES

Voltage Rated Dc

250V

Orientation

Straight

Housing Material

Thermoplastic

Kurşunsuz Kodu

yes

Voltage Rated Ac

125V

Flammability Rating

UL94 V-0

Direnç

1MOhm

Total Number Of Contacts

3
