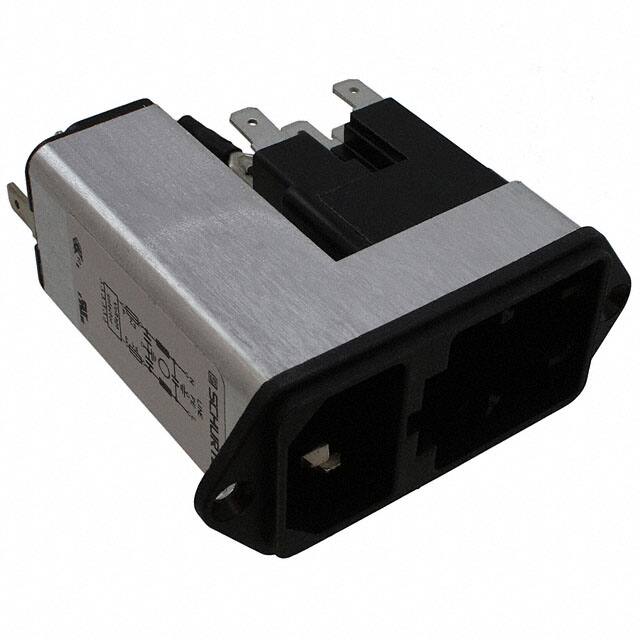

CE40.6100.151

Teknik Özellikler

Akım Değeri

6A

Ingress Protection

IP40

Nem Hassasiyeti (MSL)

Vendor Undefined

Fuse Holder Drawer

Drawer Sold Separate

Pozisyon Sayısı

3

Max Current Rating

6A

Montaj Tipi

Panel Mount, Flange

Mil Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Weight

82.000003g

Total Number Of Contacts

3

Iec Conformance

YES

Bodyshell Style

SOCKET

Shell Material

POLYETHYLENE

Kurşunsuz Kodu

yes

Coupling Type

SNAP

Connector Style

IEC 320-C14

Orientation

Straight

Voltage Rated Dc

250V

Kurşunsuz

Lead Free

Fuse

Yes

Panel Cutout Dimensions

Rectangular - 28.50mm x 53.50mm

Din Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

ECCN Kodu

EAR99

Ambalaj

Bulk

Terminal

Quick Connect - 0.189 (4.8mm)

Accomodates A Fuse

Yes (Fuse Not Included)

RoHS Durumu

ROHS3 Compliant

Kılıf / Paket

Module

Seri

CE

Radyasyon Dayanımı

No

Number Of Ports

1

Flammability Rating

UL94 V-0

Akım

6A

Montaj

Flanges, Panel, Screw

Voltageiec

250VAC

Number Of Poles

2

Gender

Male

Max Voltage Rating Ac

250V
