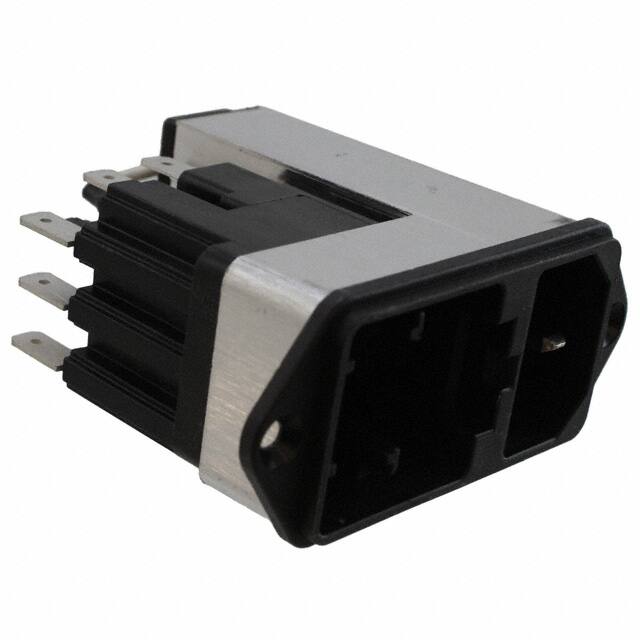

CE30.6100.151

Teknik Özellikler

Terminal

Quick Connect - 0.189 (4.8mm)

Ambalaj

Bulk

ECCN Kodu

EAR99

Accomodates A Fuse

Yes (Fuse Not Included)

Fuse

Yes

Fabrika Tedarik Süresi

10 Weeks

Panel Cutout Dimensions

Rectangular - 28.50mm x 53.50mm

Din Conformance

NO

Coupling Type

SNAP

Orientation

Straight

Voltage Rated Dc

250V

Kurşunsuz

Lead Free

Connector Style

IEC 320-C14

Kurşunsuz Kodu

yes

Shell Material

POLYETHYLENE

Bodyshell Style

SOCKET

Iec Conformance

YES

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Weight

82.000003g

Total Number Of Contacts

3

Pozisyon Sayısı

3

Fuse Holder Drawer

Drawer Sold Separate

Mil Conformance

NO

Montaj Tipi

Panel Mount, Flange

Max Current Rating

4A

Ingress Protection

IP40

Akım Değeri

4A

Depth

69mm

Nem Hassasiyeti (MSL)

Vendor Undefined

Parça Durumu

Active

Voltage Rated Ac

125V

Yükseklik

69.5mm

Onay Kuruluşu

cULus, ENEC

Frekans

60Hz

Option

GENERAL PURPOSE

Connector Type

Receptacle, Male Blades - Module

Material Flammability Rating

UL94 V-0

Max Voltage Rating Ac

250V

Gender

Male

Genişlik

30mm
