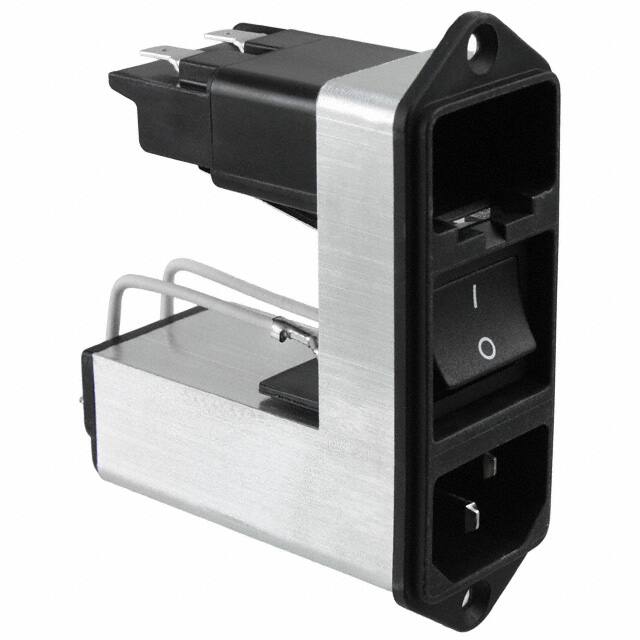

CD34.1101.151

Teknik Özellikler

ECCN Kodu

EAR99

Maks. Çalışma Sıcaklığı

85°C

Din Conformance

NO

Max Voltage Rating Ac

250V

Ingress Protection

IP40

Fuse

Yes

Voltageiec

250VAC

Number Of Poles

2

Filter Type

Filtered (EMI, RFI) - Commercial

Akım Değeri

4A

Connector Type

Receptacle, Male Blades - Module

Mil Conformance

NO

Accomodates A Fuse

Yes (Fuse Not Included)

Contact Finish Mating

TIN/TIN COPPER

Depth

69mm

Kurşunsuz Kodu

yes

Terminal

Quick Connect - 0.189 (4.8mm)

Shell Material

POLYETHYLENE

Bodyshell Style

SOCKET

Kılıf / Paket

Module

Kapasitans

68nF

Option

GENERAL PURPOSE

Flammability Rating

UL94 V-0

Switch Features

Switch On-Off

Max Current Rating

4A

Total Number Of Contacts

3

Montaj

Flanges, Panel, Screw

Panel Cutout Dimensions

Rectangular - 28.50mm x 67.50mm

Pozisyon Sayısı

3

Material Flammability Rating

UL94 V-0

Voltage Rated Dc

250V

Montaj Tipi

Panel Mount, Flange

Orientation

Straight

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Fabrika Tedarik Süresi

10 Weeks

Endüktans

1.5 mH

Gender

Male

Onay Kuruluşu

cULus, ENEC

Kurşunsuz

Lead Free

Number Of Ports

1
