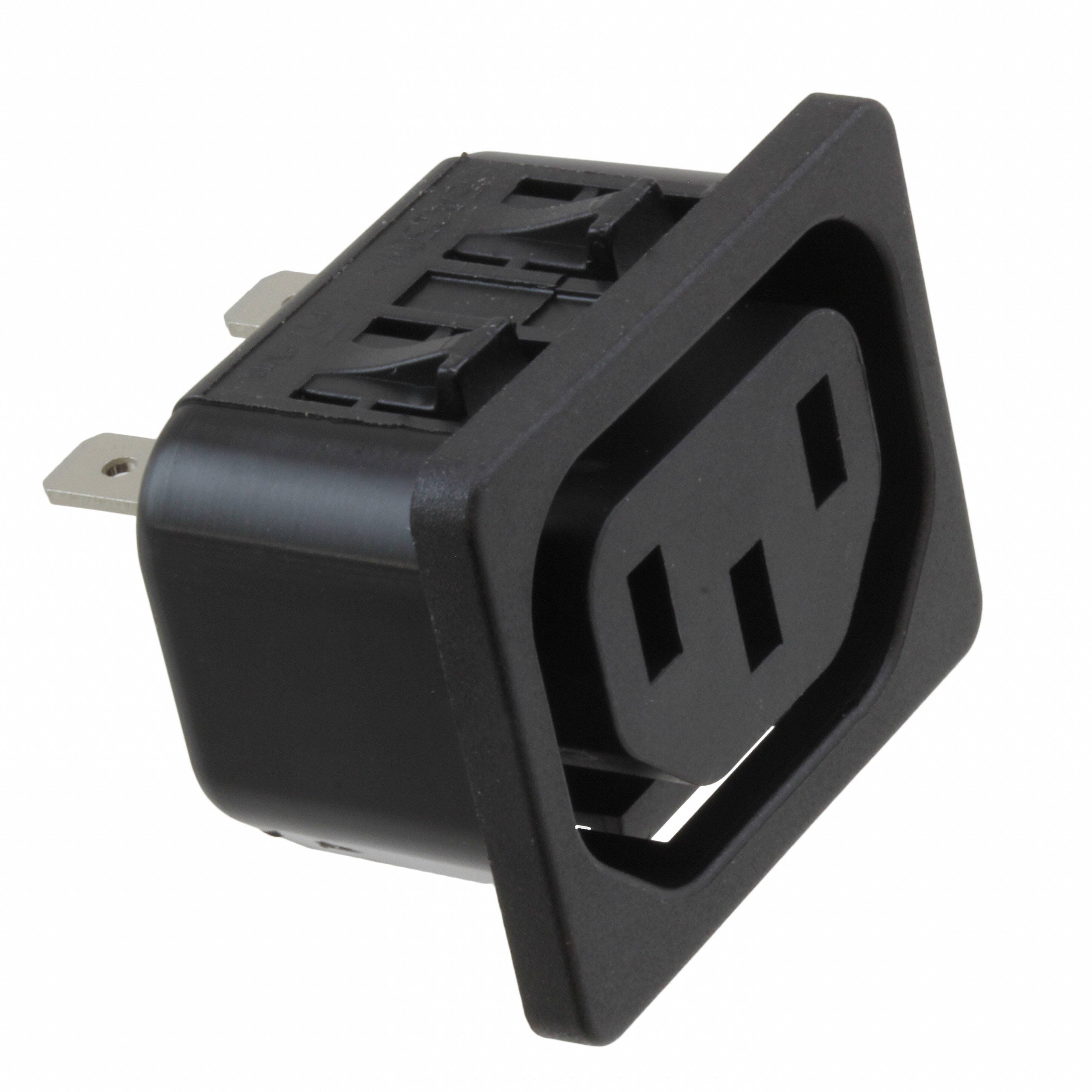

6600.4320

Teknik Özellikler

Depth

30.5mm

Ingress Protection

IP30

Accomodates A Fuse

No

Max Current Rating

15A

Filter Type

Unfiltered - Commercial

Akım Değeri

10A

Voltageiec

250VAC

Kurşunsuz

Lead Free

Connector Style

IEC 320-2-2/F

Özellikler

Light Pipe

Gender

Receptacle

Panel Cutout Dimensions

Rectangular - 32.50mm x 24.80mm

Reach Svhc

No SVHC

Shell Material

THRMOPLASTIC

Iec Conformance

YES

Fabrika Tedarik Süresi

13 Weeks

Montaj Tipi

Panel Mount, Snap-In

Kurşunsuz Kodu

yes

Kılıf / Paket

Module

Flammability Rating

UL94 V-0

Currentiec

10A

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Montaj

Panel, Snap in

Material Flammability Rating

UL94 V-0

Orientation

Straight

Din Conformance

NO

Panel Thickness

0.079 2.00mm

Min. Çalışma Sıcaklığı

-25°C

Connector Type

Receptacle, Female Sockets

Seri

6600-4

Terminal

Quick Connect - 0.250 (6.3mm)

Number Of Ports

1

Maks. Çalışma Sıcaklığı

70°C

Option

GENERAL PURPOSE

Bodyshell Style

PLUG

Mil Conformance

NO

Max Voltage Rating Ac

250V

Voltage Rated Dc

250V

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant
