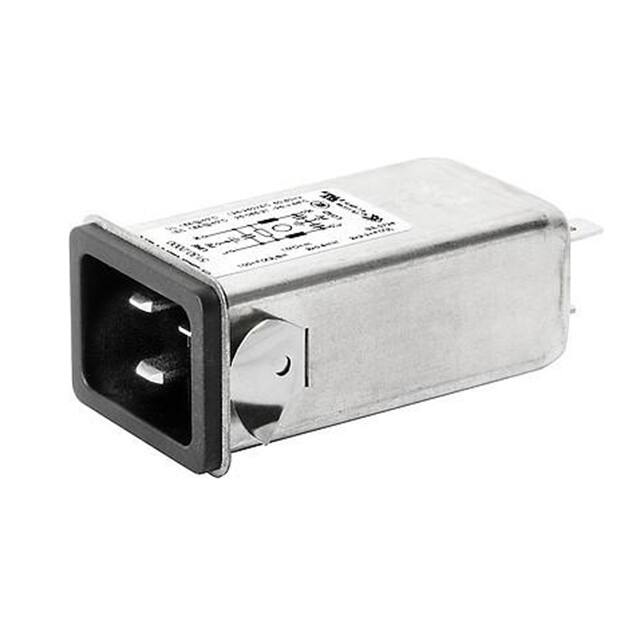

5130.1300

Teknik Özellikler

Panel Cutout Dimensions

Rectangular - 36.50mm x 28.50mm

Voltage Rated Dc

250V

RoHS Durumu

ROHS3 Compliant

Housing Material

Steel

Özellikler

Shielded

Orientation

Straight

Total Number Of Contacts

3

Kılıf / Paket

Module

Max Current Rating

16A

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

Vendor Undefined

Iec Conformance

YES

ECCN Kodu

EAR99

Maks. Çalışma Sıcaklığı

85°C

Genişlik

50.6mm

Shell Finish

TIN

Onay Kuruluşu

cULus, ENEC

Kapasitans

100nF

Accomodates A Fuse

No

Connector Type

Receptacle, Male Blades

Terminal

Quick Connect - 0.250 (6.3mm)

Parça Durumu

Active

Option

GENERAL PURPOSE

Akım

20A

Gender

Male

Mil Conformance

NO

Direnç

1MOhm

Flammability Rating

UL94 V-0

Ingress Protection

IP40

Fabrika Tedarik Süresi

13 Weeks

Filter Type

Filtered (EMI, RFI) - Commercial, Medical

Reach Svhc

No SVHC

Montaj Tipi

Panel Mount, Flange

Voltageiec

250VAC

Yükseklik

30.6mm

Number Of Ports

1

Material Flammability Rating

UL94 V-0

Min. Çalışma Sıcaklığı

-25°C

Weight

85.048569g

Max Voltage Rating Ac

250V
