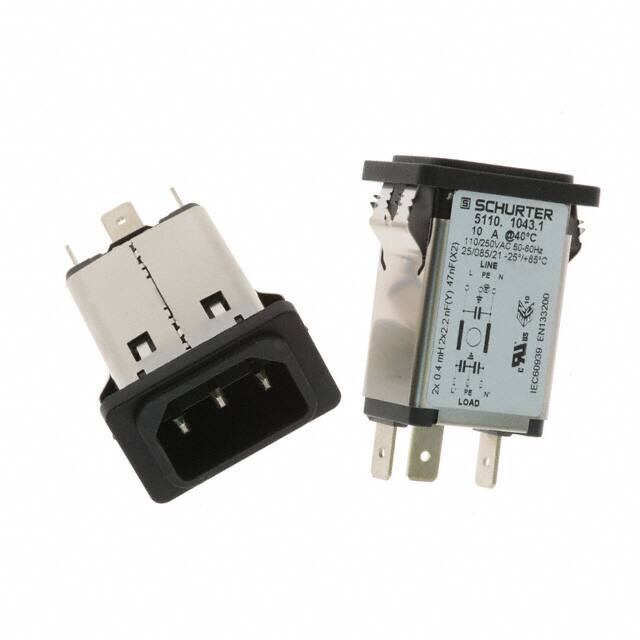

5110.1043.1

Teknik Özellikler

Kılıf / Paket

Module

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Depth

55.7mm

Ingress Protection

IP40

Pozisyon Sayısı

3

Terminal

Quick Connect - 0.250 (6.3mm)

Ambalaj

Bulk

Number Of Poles

2

Yükseklik

23mm

Filter Type

Filtered (EMI, RFI) - Commercial

Number Of Ports

1

Voltage Rated Ac

250V

Kurşunsuz Kodu

yes

Reach Svhc

No SVHC

Max Voltage Rating Ac

250V

Panel Cutout Dimensions

Rectangular - 29.00mm x 21.00mm

Akım

10A

Panel Thickness

0.031 ~ 0.118 0.79mm ~ 3.00mm

Voltage Rated Dc

250V

Min. Çalışma Sıcaklığı

-25°C

Option

GENERAL PURPOSE

Connector Style

IEC 320-C14

Din Conformance

NO

Seri

5110

Montaj

Panel, Snap in

Voltageiec

250VAC

Weight

35.000009g

Maks. Çalışma Sıcaklığı

85°C

Max Current Rating

10A

Accomodates A Fuse

No

Uzunluk

36mm

Shell Material

POLYETHYLENE

Housing Material

Thermoplastic

Connector Type

Receptacle, Male Blades

Mil Conformance

NO

Kurşunsuz

Lead Free

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Iec Conformance

YES

Gender

Male
