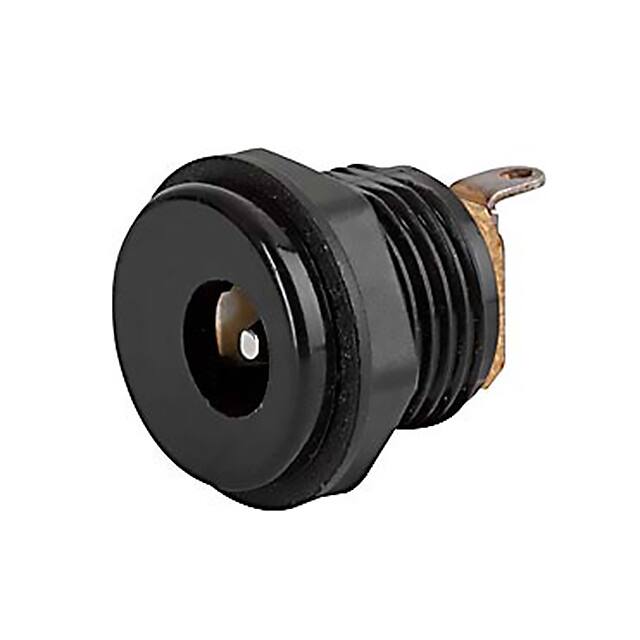

4840.2200

Teknik Özellikler

Connector Type

Jack

Option

GENERAL PURPOSE

Body Length Or Diameter

0.248 inch

Voltage Rated Dc

12V

Gender

Male

Body Depth

0.492 inch

Rated Current Power

1A

Number Of Ports

1

Montaj Tipi

Panel Mount

Parça Durumu

Active

Terminal Sayısı

3

Ambalaj

Bulk

Includes

2 pcs - 1 Connector, 1 Nut

Mounting Feature

Bulkhead - Rear Side Nut

Housing Material

Polycarbonate (PC)

Fabrika Tedarik Süresi

23 Weeks

Kurşunsuz Kodu

yes

Seri

4840

Montaj

Bulkhead, Panel, Rear Side Nut

Çalışma Sıcaklığı

-20°C~70°C

Number Of Positionscontacts

2 Conductors, 3 Contacts

Uzunluk

18.2mm

Actual Diameter

0.079 (2.00mm ID), 0.248 (6.30mm OD)

Akım Değeri

500mA

Nem Hassasiyeti (MSL)

Vendor Undefined

Contact Materials

Copper Alloy

Weight

2.500003g

Industry Recognized Mating Diameter

2.10mm ID (0.083), 5.50mm OD (0.217)

Reach Svhc

No SVHC

Housing Color

Black

Terminal

Solder

Bodyshell Style

SOCKET

Shielding

Unshielded

Orientation

Straight

RoHS Durumu

ROHS3 Compliant

Max Current Rating

500mA

Internal Switchs

Single Switch, Normally Closed

Voltage Rated Ac

12V
