4430.013

Teknik Özellikler

Insulation Resistance

10000000000Ohm

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

Vendor Undefined

Contact Voltageacmax

60V

Contact Ac Max Rating R Load

0.2A@60VAC

Additional Feature

19.5X9.6 RECT BUTN WITH LEGEND

JESD-609 Kodu

e3

Insulation Materials

POLYSULFONE

Operating Temperature Max

85°C

Actuator Length

0.492 inch

Length Termination

0.134 inch

Contact Currentdcmax

0.2A

Terminal Material

BRASS

Electricallife

100000 Cycle(s)

Actuator Type

PUSHBUTTON

Fabrika Tedarik Süresi

22 Weeks

Center Contact Material

BRASS

Actuatorcolor

BLUE

Parça Durumu

Active

Center Contact Plating

SILVER

Yüzey Montaj

NO

Contact Currentacmax

0.2A

Switch Function

DPST

Kurşunsuz Kodu

yes

Contact Dc Max Rating R Load

0.2A@50VDC

Switch Type

PUSHBUTTON SWITCH

Mounting Feature

THROUGH HOLE-STRAIGHT

End Contact Plating

SILVER

Termination Type

SOLDER

Actuator Material

POLYCARBONATE

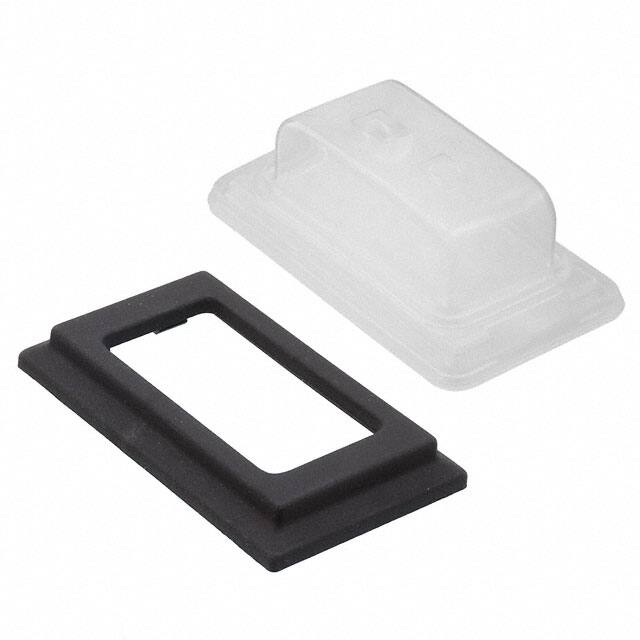

Accessory Type

Cover and Collar

End Contact Material

BRASS

Operating Temperature Min

-25°C

Contact Resistance

0.025mOhm

Pcb Hole Count

6

Contact Voltagedcmax

50V

Body Height

12.0904mm

Contact Function

ON-(OFF)

Seri

TA45

Terminal Kaplaması

Matte Tin (Sn)
