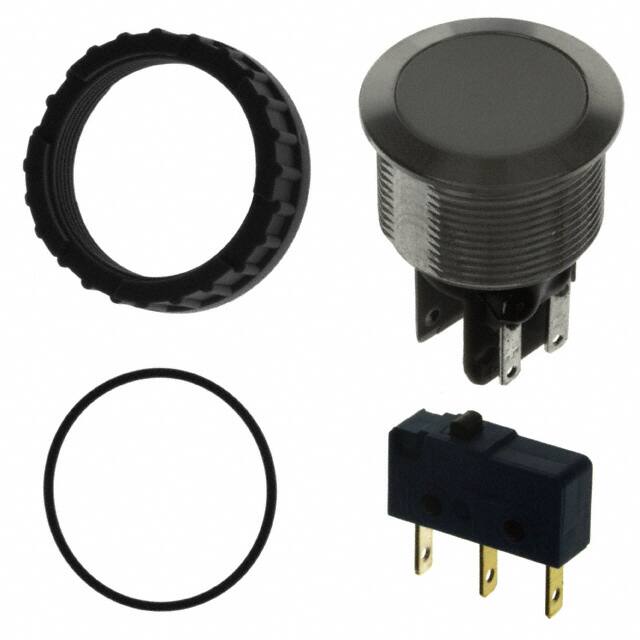

1241.7036.1131000

Teknik Özellikler

Genişlik

76.2mm

Switch Function

On-Mom

Panel Cutout Dimensions

Circular - 22.10mm Dia

HTS Kodu

8536.50.70.00

Weight

31.751466g

Current Rating Amps

10A AC

Uzunluk

127mm

Ambalaj

Bulk

Nominal Gerilim

250V

Actuator Type

Round, Button, Flush

Özellikler

Ceramic Actuator

Max Voltage Rating Ac

250V

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Obsolete

Montaj

Front, Panel

Illumination Type

Illuminated, LED

Contact Current Rating

10A

Voltage Rated Ac

250V

Montaj Tipi

Panel Mount, Front

Tip

Anti-Vandal, Illuminated

Illumination Voltage Nominal

24VDC

Terminal

Quick Connect

Kılıf / Paket

Ceramic

Nem Hassasiyeti (MSL)

Vendor Undefined

Color Actuatorcap

Clear (White Filter/Diffuser)

Akım Değeri

10A

Mechanical Life

1,500,000 Cycles

Circuit

SPDT

Çalışma Sıcaklığı

-25°C~85°C

Renk

Red

Terminal Stili

Quick Connect - 0.110 (2.8mm)

Ingress Protection

IP40

Seri

MSM CS

Electricallife

50,000 Cycles

Illumination Type Color

LED, Red

ECCN Kodu

EAR99

Packing Method

BOX

Contact Materials

Silver

Yükseklik

25.4mm

Contact Voltage Rating Ac

250V
