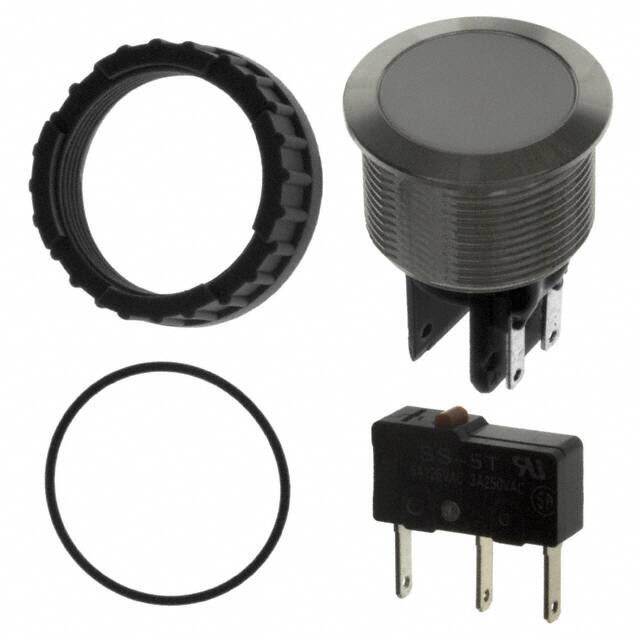

1241.7036.1124000

Teknik Özellikler

Switch Function

On-Mom

Genişlik

76.2mm

Panel Cutout Dimensions

Circular - 22.10mm Dia

Housing Material

Stainless Steel

Current Rating Amps

5A AC

Ratings

IP40, IP65

Weight

31.751466g

HTS Kodu

8536.50.70.00

Reach Svhc

No SVHC

Max Voltage Rating Ac

250V

Operating Force

4.5 N

Uzunluk

127mm

Ambalaj

Bulk

Özellikler

Ceramic Actuator

Actuator Type

Round, Button, Flush

Contact Current Rating

5A

Illumination Type

Illuminated, LED

Montaj

Front, Panel

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Obsolete

Montaj Tipi

Panel Mount, Front

Tip

Anti-Vandal, Illuminated

Illumination Voltage Nominal

24VDC

Terminal

Quick Connect

Voltage Rated Ac

125V

Circuit

SPDT

Çalışma Sıcaklığı

-25°C~85°C

Renk

Blue

Kılıf / Paket

Ceramic

Nem Hassasiyeti (MSL)

Vendor Undefined

Color Actuatorcap

Clear (White Filter/Diffuser)

Mechanical Life

1,500,000 Cycles

Akım Değeri

5A

Contact Currentacmax

5A

Pozisyon Sayısı

2

Electricallife

200,000 Cycles

Illumination Type Color

LED, Blue

Ingress Protection

IP40

Seri

MSM CS

Terminal Stili

Quick Connect - 0.110 (2.8mm)
