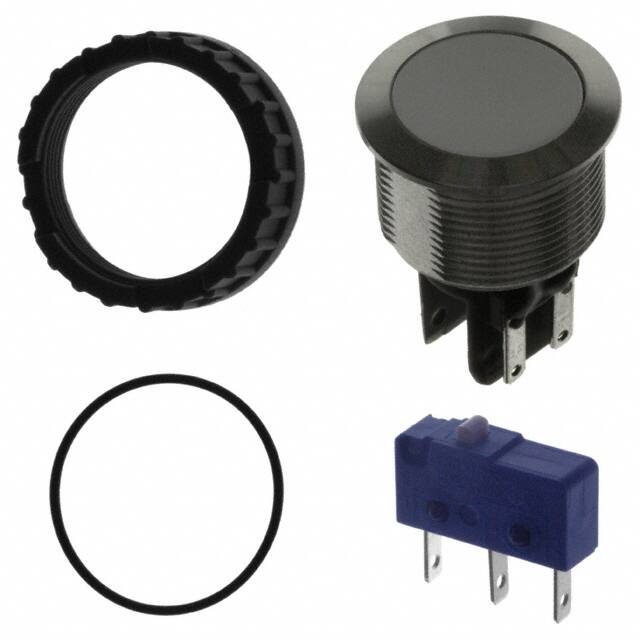

1241.7036.1114000

Teknik Özellikler

Contact Voltage Rating Dc

30V

Contact Plating

Gold

Montaj Tipi

Panel Mount, Front

Terminal

Quick Connect

Illumination Voltage Nominal

24VDC

Tip

Anti-Vandal, Illuminated

Color Actuatorcap

Clear (White Filter/Diffuser)

Nem Hassasiyeti (MSL)

Vendor Undefined

Kılıf / Paket

Ceramic

Mechanical Life

1,500,000 Cycles

Max Voltage Rating Dc

30V

Voltage Rated Dc

30V

Akım Değeri

100mA

Circuit

SPDT

Çalışma Sıcaklığı

-25°C~85°C

Renk

Blue

Seri

MSM CS

Ingress Protection

IP40

Terminal Stili

Quick Connect - 0.110 (2.8mm)

Illumination Type Color

LED, Blue

Electricallife

200,000 Cycles

Packing Method

BOX

Contact Currentdcmax

0.1A

ECCN Kodu

EAR99

Yükseklik

31.75mm

Contact Materials

Silver

Switch Function

On-Mom

Genişlik

76.2mm

Panel Cutout Dimensions

Circular - 22.10mm Dia

HTS Kodu

8536.50.90.31

Reach Svhc

No SVHC

Current Rating Amps

100mA DC

Weight

36.28739g

Uzunluk

101.6mm

Ambalaj

Bulk

Özellikler

Ceramic Actuator

Actuator Type

Round, Button, Flush

Nominal Gerilim

30V

Operating Force

4.5 N

RoHS Durumu

ROHS3 Compliant
