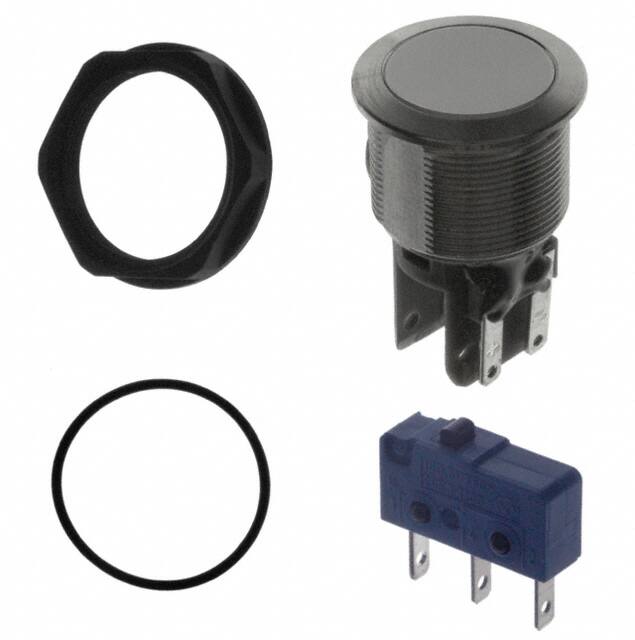

1241.7026.1131000

Teknik Özellikler

Voltage Rated Ac

250V

Tip

Anti-Vandal, Illuminated

Illumination Voltage Nominal

24VDC

Terminal

Quick Connect

Montaj Tipi

Panel Mount, Front

Akım Değeri

10A

Mechanical Life

1,500,000 Cycles

Kılıf / Paket

Ceramic

Nem Hassasiyeti (MSL)

Vendor Undefined

Color Actuatorcap

Clear (White Filter/Diffuser)

Renk

Red

Çalışma Sıcaklığı

-25°C~85°C

Circuit

SPDT

Terminal Stili

Quick Connect - 0.110 (2.8mm)

Seri

MSM CS

Ingress Protection

IP40

Illumination Type Color

LED, Red

Electricallife

50,000 Cycles

ECCN Kodu

EAR99

Packing Method

BOX

Contact Voltage Rating Ac

250V

Operating Forcemax

4.5 N

Contact Materials

Silver

Contact Resistance

0.03mOhm

Yükseklik

25.4mm

Housing Material

STAINLESS STEEL

Panel Cutout Dimensions

Circular - 19.10mm Dia

Genişlik

76.2mm

Switch Function

On-Mom

Insulation Resistance

100000000Ohm

HTS Kodu

8536.50.70.00

Actuator Travel

0.9906 mm

Weight

36.28739g

Current Rating Amps

10A AC

Nominal Gerilim

250V

Özellikler

Ceramic Actuator

Actuator Type

Round, Button, Flush

Uzunluk

76.2mm

Ambalaj

Bulk

Max Voltage Rating Ac

250V
