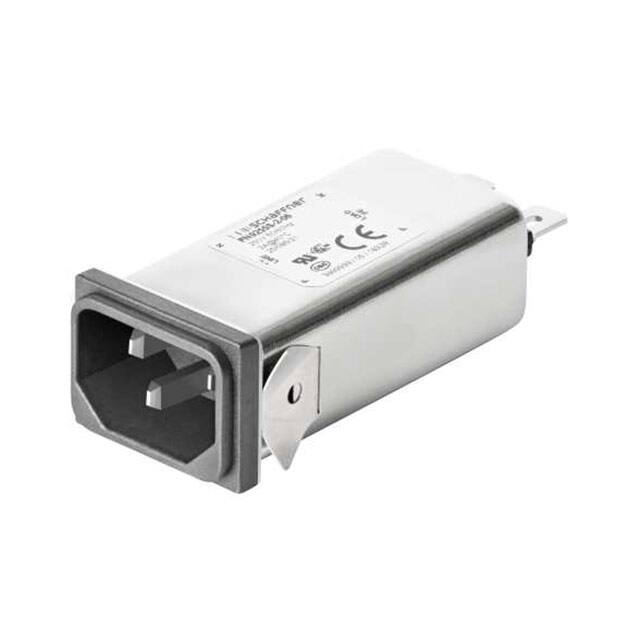

FN9255S-2-06

Teknik Özellikler

Panel Cutout Dimensions

Rectangular - 29.50mm x 21.00mm

Connector Type

Receptacle, Male Blades

Ambalaj

Bulk

Pozisyon Sayısı

3

Fabrika Tedarik Süresi

12 Weeks

Ingress Protection

IP40

Nem Hassasiyeti (MSL)

Not Applicable

Filter Type

Filtered (EMI, RFI) - Commercial

Currentul

2A

Panel Thickness

0.059 ~ 0.087 1.50mm ~ 2.20mm

Parça Durumu

Active

Seri

FN 9255

Terminal

Quick Connect - 0.250 (6.3mm)

Accomodates A Fuse

No

Onay Kuruluşu

CE, CQC, ENEC, UR

Connector Style

IEC 320-C14

Voltageul

250VAC

Montaj Tipi

Panel Mount, Snap-In

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0
