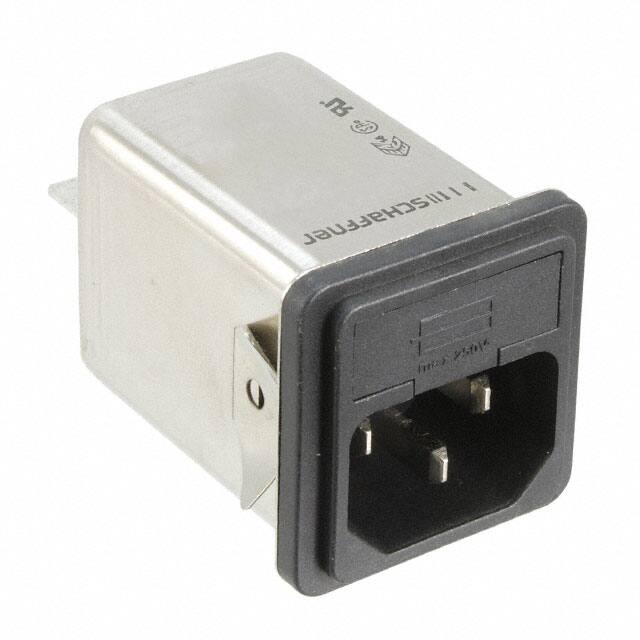

FN261S-4-06-10

Teknik Özellikler

Total Number Of Contacts

3

Ambalaj

Tray

Onay Kuruluşu

CQC, CSA, ENEC, UL

Fuse

Yes

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Depth

60.3mm

Max Current Rating

4A

RoHS Durumu

RoHS Compliant

Gender

Male

Frekans

400Hz

Seri

FN 9260

Voltage Rated Ac

250V

Accomodates A Fuse

Yes (Fuse Not Included)

Montaj

Panel, Snap in

Fabrika Tedarik Süresi

10 Weeks

Fuse Holder Drawer

Fuse Holder

Ingress Protection

IP40

Contact Materials

NOT SPECIFIED

Akım

4A

Pozisyon Sayısı

3

Orientation

Straight

Maks. Çalışma Sıcaklığı

85°C

Option

GENERAL PURPOSE

Montaj Tipi

Panel Mount, Snap-In

Flammability Rating

UL94 V-2

Panel Thickness

0.024 ~ 0.059 0.60mm ~ 1.50mm

Contact Finish Mating

NOT SPECIFIED

Mil Conformance

NO

Yükseklik

34mm

Iec Conformance

YES

Parça Durumu

Active

Kurşunsuz Kodu

yes

Connector Type

Receptacle, Male Blades - Module

Max Voltage Rating Ac

250V

Terminal

Quick Connect - 0.250 (6.3mm)

Material Flammability Rating

UL94 V-2

Yayın Yılı

2003

Number Of Ports

1

ECCN Kodu

EAR99
