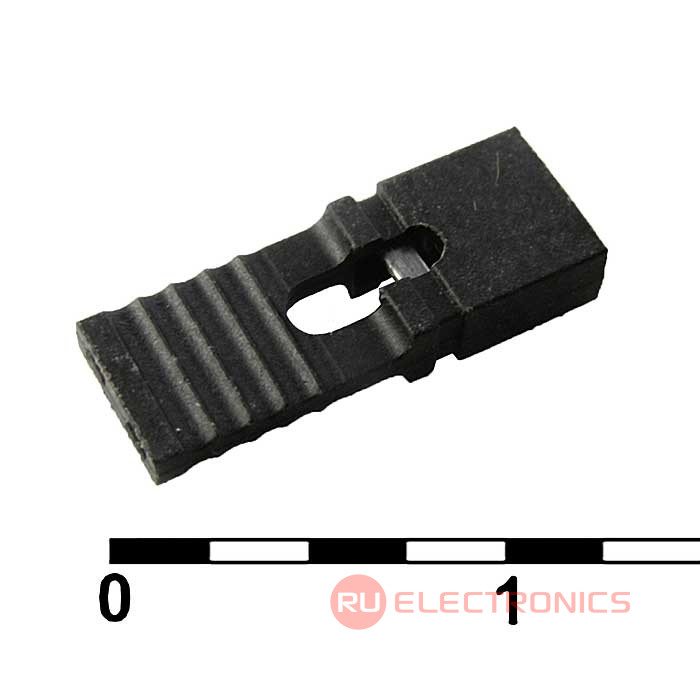

MJ-0-L 2.54 mm

Teknik Özellikler

Number Of Contacts

double contact jumper

Material

contact - phosphor bronze with coating - Ni/ housing - GF PBT (UL94V-0), black

Montaj Tipi

cable crimping

Nominal Current

1 A

Yükseklik

13.5 mm

Insulation Resistance

500 MΩ min

Gross Weight

0.12

Dielectric Strength

100 (50 Hz, 1 min.) V

Genişlik

5 mm

Connector Type

MJ-0-L series jumper connector

Depth

2.5 mm

Operating Temperature Range

-20…+85 °C

Contact Resistance

30 mΩ max

Transport Packaging Sizequantity

28.5*21*19/20000

Contact Pitch

2.54 mm
