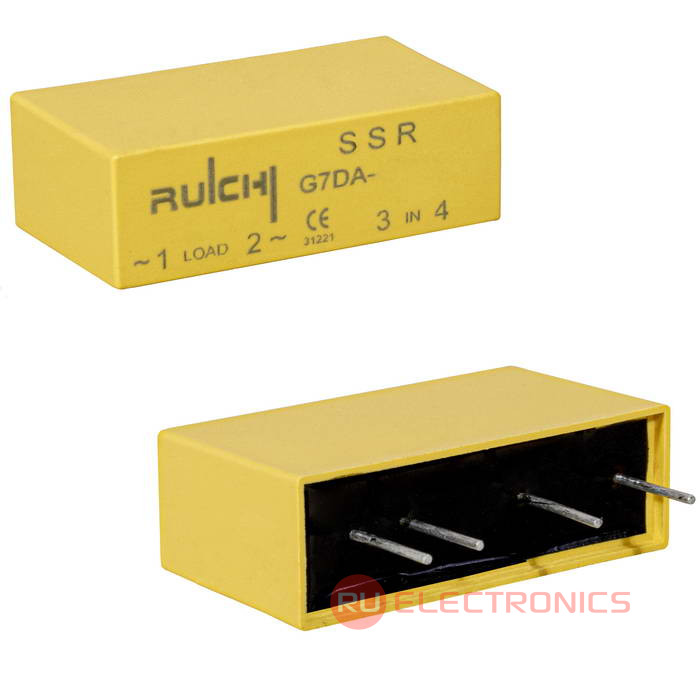

G7DA-48 (Z)D3 8A/440V (3-32V)

Teknik Özellikler

Control Mode

Z - Zero Crossing

Operating Ambient Temperature

-25…+70 (non-condensing) °C

Control Voltage

3...32 (DC) V

Gross Weight

18.60

Insulation Resistance

500 (at Uins.dc=500V) MOhm min

Transport Packaging Sizequantity

43*24.5*24.5/500

Tip

G7 series single-phase solid state relay

Depth

33 mm

Yükseklik

22 mm

Switching Time

10 ms max

Leakage Current

not more than 1.5 mA

Load Current

8 A

Load Voltage

~440 V

Dielectric Strength

1500 (50 Hz / 1 min) V

Genişlik

12.5 mm

Control Current

6-35 mA max
