Adet bazlı fiyat
- 1+ adet$89.74
- 10+ adet$84.66
- 100+ adet$79.87
- 500+ adet$75.35
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Coupling Type
- BAYONET-SNAP
- Center Gender
- Female to Female
- Din Conformance
- NO
- Conversion Type
- Between Series
- Montaj Tipi
- Free Hanging (In-Line)
- HTS Kodu
- 8536.69.80.00
- Frequencymax
- 4GHz
- Style
- Straight
- Iec Conformance
- NO
- Center Contact Plating
- Gold

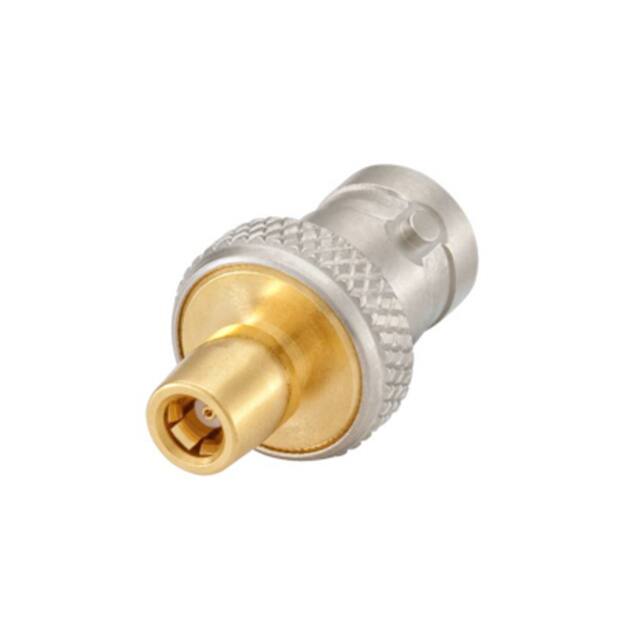

- Adapter Series
- BNC to SMB
- Adapter Type
- Jack to Jack
- Filter Feature
- NO
- Mating Cycles
- 500
- Panel Mount
- NO
- Convert From Adapter End
- SMB Jack, Female Socket
- ECCN Kodu
- EAR99
- Mil Conformance
- NO
- Operating Frequency Max
- 4GHz
- Insulation Materials
- POLYTETRAFLUORO ETHYLENE
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Parça Durumu
- Active
- Fastening Type
- Bayonet Lock, Snap-On
- Convert To Adapter End
- BNC Jack, Female Socket
- Empedans
- 50Ohm
- Fabrika Tedarik Süresi
- 13 Weeks
- Vswr
- 1.5
- Yayın Yılı
- 2014
- Body Finish
- Gold, Nickel
- Option
- GENERAL PURPOSE
- Çalışma Sıcaklığı
- -55°C~155°C
- RoHS Durumu
- RoHS Compliant
- Body Material
- Beryllium Copper, Brass
- Insertion Loss
- 0.1 dB
- Center Contact Material
- Beryllium Copper
