Adet bazlı fiyat
- 1+ adet$38.41
- 10+ adet$36.23
- 100+ adet$34.18
- 500+ adet$32.25
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Center Contact Plating
- Gold
- Center Gender
- Female to Male
- Fabrika Tedarik Süresi
- 13 Weeks
- Reliability
- COMMERCIAL
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Montaj Tipi
- Free Hanging (In-Line), Right Angle
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Fastening Type
- Bayonet Lock, Bayonet Lock
- Body Material
- Brass
- Insulation Materials
- POLYTETRAFLUORO ETHYLENE
- Center Contact Material
- Beryllium Copper, Brass
- Operating Frequency Max
- 10GHz
- Conversion Type
- Same Series
- Option
- GENERAL PURPOSE
- Adapter Type
- Plug to Jack
- Frequencymax
- 10GHz
- Mil Conformance
- NO
- Iec Conformance
- NO
- Yayın Yılı
- 2014
- Çalışma Sıcaklığı
- -55°C~155°C
- Mating Cycles
- 500
- Additional Feature
- INSERTION LOSS AND VSWR MAX AT: 4 GHZ
- Contact Gender
- MALE-FEMALE

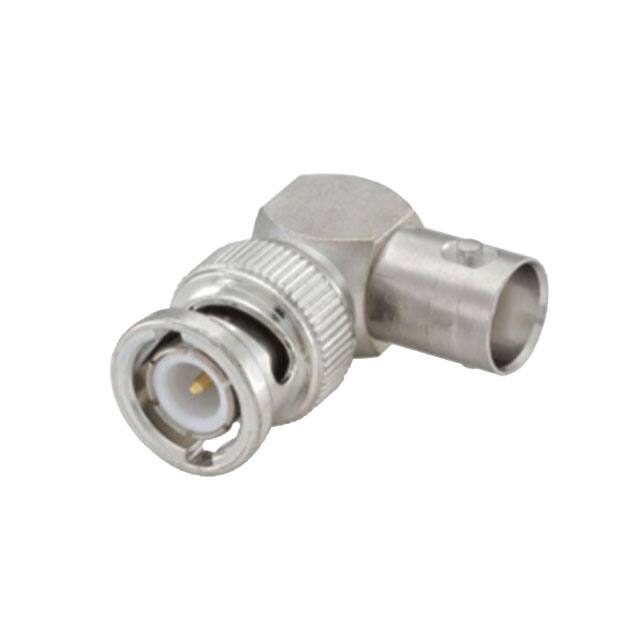

- Adapter Series
- BNC to BNC
- Empedans
- 50Ohm
- Din Conformance
- NO
- Filter Feature
- NO
- Style
- Right Angle
- RoHS Durumu
- RoHS Compliant
- Convert From Adapter End
- BNC Plug, Male Pin
- Contact Finish Mating
- NOT SPECIFIED
- Insertion Loss
- 0.1 dB
- Body Finish
- White Bronze
- Parça Durumu
- Active
- Panel Mount
- NO
- Convert To Adapter End
- BNC Jack, Female Socket
- Vswr
- 1.29
