Adet bazlı fiyat
- 1+ adet$44.35
- 10+ adet$41.84
- 100+ adet$39.47
- 500+ adet$37.23
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler

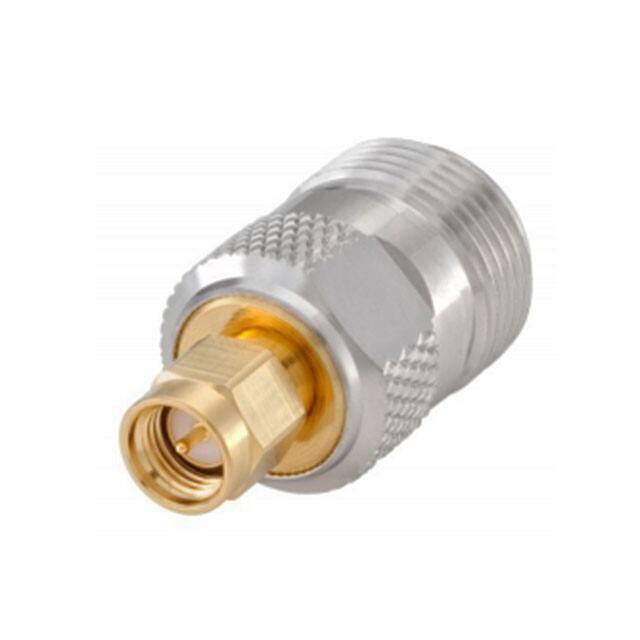

- Adapter Series
- SMA to N
- Çalışma Sıcaklığı
- -55°C~155°C
- Kılıf / Paket
- SMA
- Mating Cycles
- 500
- RoHS Durumu
- RoHS Compliant
- Convert To Adapter End
- N Jack, Female Socket
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 13 Weeks
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Convert From Adapter End
- SMA Plug, Male Pin
- Vswr
- 1.11
- Filter Feature
- NO
- Fastening Type
- Threaded, Threaded
- Center Contact Plating
- Gold
- Iec Conformance
- NO
- Insulation Materials
- POLYTETRAFLUORO ETHYLENE
- Din Conformance
- NO
- Center Contact Material
- Beryllium Copper
- Center Gender
- Female to Male
- Mil Conformance
- NO
- Additional Feature
- CAPTIVATED CENTER CONTACT
- Body Material
- Beryllium Copper, Brass
- Adapter Type
- Plug to Jack
- Montaj Tipi
- Free Hanging (In-Line)
- Body Finish
- Gold, Nickel
- Conversion Type
- Between Series
- Option
- GENERAL PURPOSE
- Frequencymax
- 11GHz
- Operating Frequency Max
- 11GHz
- Yayın Yılı
- 2007
- Insertion Loss
- 0.13 dB
- Empedans
- 50Ohm
- Coupling Type
- THREADED-THREADED
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Style
- Straight
- Panel Mount
- NO
- Contact Finish Mating
- NOT SPECIFIED
