Adet bazlı fiyat
- 1+ adet$72.78
- 10+ adet$68.66
- 100+ adet$64.78
- 500+ adet$61.11
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- RoHS Durumu
- RoHS Compliant
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Adapter Series
- SMA to SMA
- Parça Durumu
- Active
- Vswr
- 1.44
- Insulation Materials
- POLYTETRAFLUORO ETHYLENE
- Montaj Tipi
- Panel Mount
- Convert From Adapter End
- SMA Jack, Female Socket
- Insertion Loss
- 0.13 dB
- Option
- GENERAL PURPOSE
- Fastening Type
- Threaded, Threaded
- Center Gender
- Female to Female
- Mil Conformance
- NO
- Includes

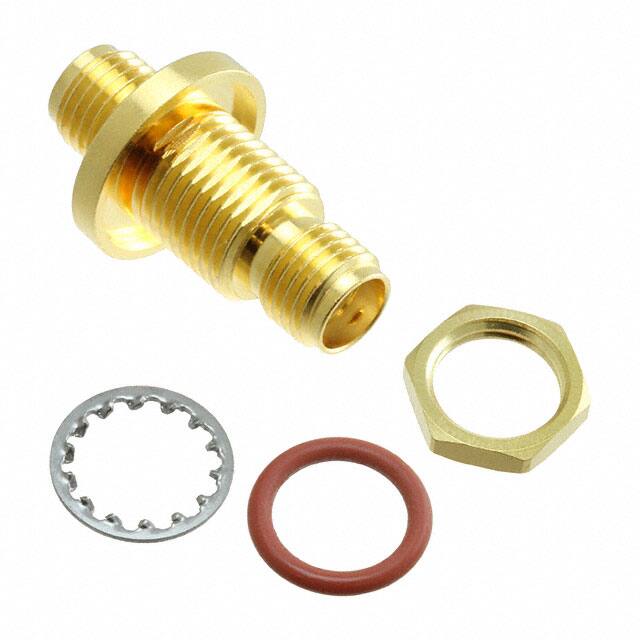

- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Center Contact Material
- Beryllium Copper
- Din Conformance
- NO
- Çalışma Sıcaklığı
- -55°C~125°C
- Kılıf / Paket
- SMA
- Filter Feature
- NO
- Empedans
- 50Ohm
- Contact Finish Mating
- NOT SPECIFIED
- Yayın Yılı
- 2009
- Fabrika Tedarik Süresi
- 13 Weeks
- Operating Frequency Max
- 18GHz
- Convert To Adapter End
- SMA Jack, Female Socket
- Iec Conformance
- NO
- Mounting Feature
- Bulkhead
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Center Contact Plating
- Gold
- Adapter Type
- Jack to Jack
- Mating Cycles
- 500
- Style
- Straight
- Body Material
- Beryllium Copper, Brass
- Frequencymax
- 18GHz
- Conversion Type
- Same Series
- Panel Mount
- YES
