Adet bazlı fiyat
- 1+ adet$30.98
- 10+ adet$29.23
- 100+ adet$27.58
- 500+ adet$26.01
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler

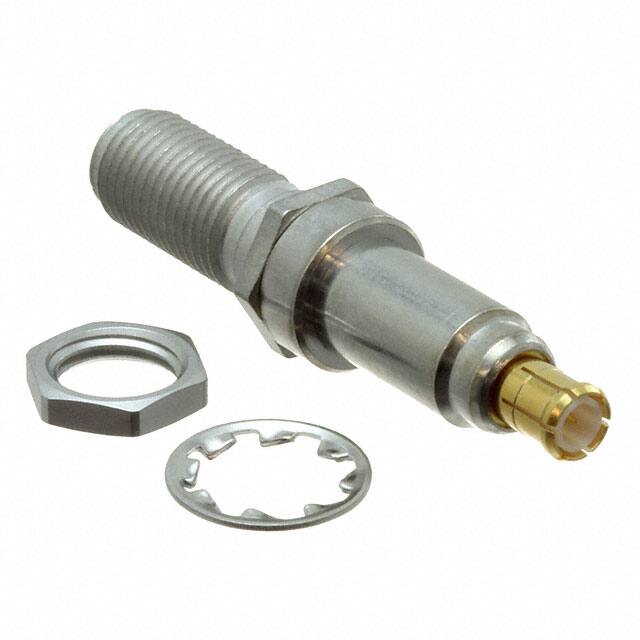

- Adapter Series
- SMA to MCX
- Empedans
- 50Ohm
- Conversion Type
- Between Series
- RoHS Durumu
- RoHS Compliant
- Mil Conformance
- NO
- Yayın Yılı
- 2014
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 13 Weeks
- Mating Cycles
- 500
- Iec Conformance
- YES
- Body Material
- Beryllium Copper, Brass
- HTS Kodu
- 8536.69.80.00
- Convert To Adapter End
- SMA Jack, Female Socket
- Option
- GENERAL PURPOSE
- Insulation Materials
- POLYTETRAFLUORO ETHYLENE
- Contact Gender
- MALE-FEMALE
- Panel Mount
- YES
- Additional Feature
- STANDARD: IEC 60169-36
- Center Contact Material
- Beryllium Copper
- Operating Frequency Max
- 6GHz
- Body Finish
- Gold; White Bronze
- Convert From Adapter End
- MCX Plug, Male Pin
- Center Gender
- Female to Male
- Filter Feature
- NO
- Mounting Feature
- Bulkhead
- Din Conformance
- NO
- Includes
- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Style
- Straight
- Frequencymax
- 6GHz
- Montaj Tipi
- Panel Mount
- Insertion Loss
- 0.6 dB
- Coupling Type
- SNAP-THREADED
- Contact Finish Mating
- NOT SPECIFIED
- ECCN Kodu
- EAR99
- Fastening Type
- Snap-On, Threaded
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Adapter Type
- Plug to Jack
- Center Contact Plating
- Gold
- Vswr
- 1.2
- Çalışma Sıcaklığı
- -55°C~155°C
