Adet bazlı fiyat
- 1+ adet$76.08
- 10+ adet$71.77
- 100+ adet$67.71
- 500+ adet$63.88
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Parça Durumu
- Active
- Vswr
- 1.62
- Insulation Materials
- POLYTETRAFLUORO ETHYLENE
- Montaj Tipi
- Free Hanging (In-Line)
- RoHS Durumu
- RoHS Compliant

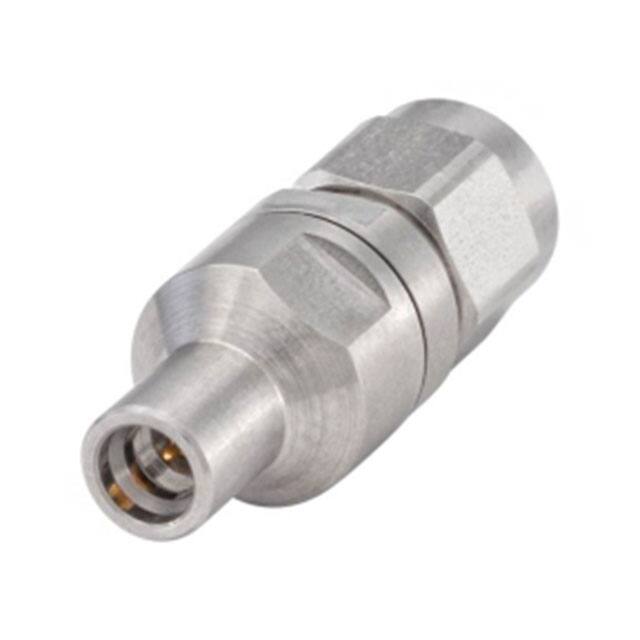

- Adapter Series
- SMA to SMP
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Coupling Type
- SNAP-THREADED
- Insertion Loss
- 0.16 dB
- Fastening Type
- Snap-On, Threaded
- Option
- GENERAL PURPOSE
- Convert From Adapter End
- SMP Plug, Male Pin
- Center Contact Material
- Beryllium Copper
- Din Conformance
- NO
- Çalışma Sıcaklığı
- -65°C~155°C
- Center Gender
- Male to Male
- Mil Conformance
- NO
- Contact Finish Mating
- NOT SPECIFIED
- Yayın Yılı
- 2016
- Fabrika Tedarik Süresi
- 13 Weeks
- Filter Feature
- NO
- HTS Kodu
- 8536.69.80.00
- Empedans
- 50Ohm
- Operating Frequency Max
- 26.5GHz
- Convert To Adapter End
- SMA Plug, Male Pin
- Center Contact Plating
- Gold
- Iec Conformance
- NO
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Body Material
- Stainless Steel
- Frequencymax
- 26.5GHz
- Conversion Type
- Between Series
- Adapter Type
- Plug to Plug
- Mating Cycles
- 500
- Additional Feature
- INSERTION LOSS MAX AT 10GHZ, CAPTIVE CENTER CONTACT
- Style
- Straight
- Panel Mount
- NO
- ECCN Kodu
- EAR99
