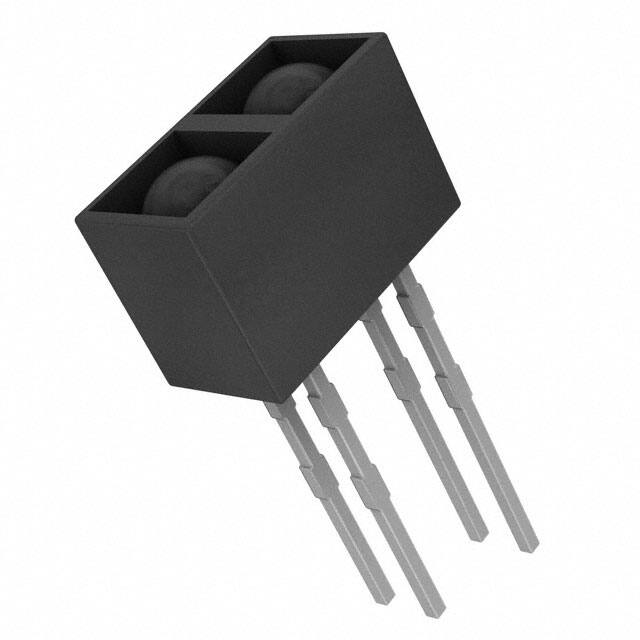

RPR-359F

Teknik Özellikler

Measurement Rangemax

3.5 mm

Montaj Tipi

Through Hole

Response Time

10μs, 10μs

RoHS Durumu

ROHS3 Compliant

Forward Current

50mA

Ambalaj

Bulk

Termination Type

SOLDER

Measurement Rangemin

3.5 mm

Body Height

5.8mm

Reverse Voltage Dc

5V

Montaj

Through Hole

Yayın Yılı

2002

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Channels

1

Çıkış Tipi

Phototransistor

Max Collector Current

30mA

Rise Time

10μs

Fall Time Typ

10 μs

Kurşunsuz Kodu

yes

Terminal Kaplaması

Tin/Copper (Sn/Cu)

Output Currentmax

0.5mA

Forward Voltage

1.3V

Collectoremitter Breakdown Voltage

30V

JESD-609 Kodu

e2

Body Length Or Diameter

8.7mm

Sensing Method

Reflective

Pin Sayısı

4

Collector Emitter Voltage Vceo

30V

Kurşunsuz

Lead Free

Çalışma Sıcaklığı

-25°C~85°C

Gap Size

3.5mm

Algılama Mesafesi

0.138 (3.5mm)

Housing

PLASTIC

Parça Durumu

Not For New Designs

Sensorstransducers Type

LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE

Kılıf / Paket

PCB Mount
