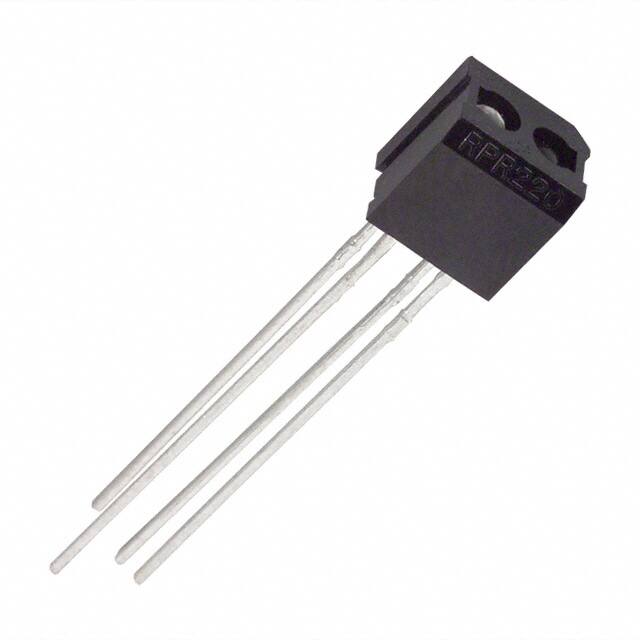

RPR-220

Teknik Özellikler

Measurement Rangemin

6 mm

Termination Type

SOLDER

Forward Current

50mA

Ambalaj

Bulk

Uzunluk

6.4mm

Montaj Tipi

Through Hole

Measurement Rangemax

6 mm

RoHS Durumu

ROHS3 Compliant

Radyasyon Dayanımı

No

Number Of Channels

1

Terminal Kaplaması

Tin/Silver/Copper (Sn/Ag/Cu)

Kurşunsuz Kodu

yes

Çıkış Tipi

Phototransistor

Fall Time Typ

10 μs

Rise Time

10μs

Max Collector Current

30mA

Power Dissipation

80mW

Supply Voltagemax Vsup

1.6V

Montaj

Through Hole

Output Range

0.08-0.80mA

Yayın Yılı

2002

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reverse Voltage

5V

Pin Sayısı

4

Sensing Method

Reflective

Contact Plating

Copper, Silver, Tin

Collector Emitter Voltage Vceo

30V

Yükseklik

6.5mm

Collectoremitter Breakdown Voltage

30V

Output Currentmax

0.8mA

Forward Voltage

1.34V

JESD-609 Kodu

e1

Genişlik

4.9mm

Voltage Rated Dc

1.34V

Kılıf / Paket

Radial - 4 Leads

Parça Durumu

Active

Sensorstransducers Type

LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE

Fabrika Tedarik Süresi

12 Weeks

Kurşunsuz

Lead Free

Additional Feature

HIGH SENSITIVITY, 0.10UA VCE, 0.50UA DARK CURRENT
