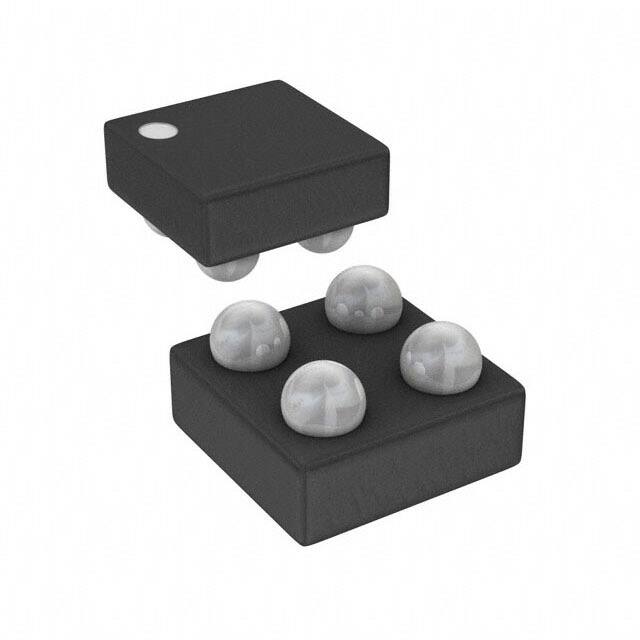

BU52055GWZ-E2

Teknik Özellikler

Additional Feature

SEATED HEIGHT-MAX

Power Dissipation

100mW

Function

Omnipolar Switch

Terminal Sayısı

4

Body Breadth

0.8 mm

Çıkış Tipi

Push-Pull

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sensing Method

Hall Effect

Body Length Or Diameter

0.8mm

Ambalaj

Tape & Reel (TR)

Polarization

North Pole, South Pole

Output Current

500μA

Output Polarity

INVERTING

Magnetic Field Rangemax

5.5 mT

Pin Sayısı

4

Montaj

Surface Mount

Power Supplies

1.8V

Nominal Supply Current

5μA

Fabrika Tedarik Süresi

13 Weeks

Hysteresis

0.8 mT

Kurşunsuz

Lead Free

Operating Supply Current

5μA

Output Range

0.20-1.60V

Usage Level

Industrial grade

Contact Plating

Copper, Silver, Tin

Besleme Gerilimi

1.65V~3.6V

Çalışma Sıcaklığı

-40°C~85°C TA

Magnetic Field Rangemin

1.5 mT

Max Output Current

500μA

RoHS Durumu

ROHS3 Compliant

Test Conditions

25°C

Sensing Range

±5.5mT Trip, ±1.5mT Release

Montaj Tipi

Surface Mount

Kılıf / Paket

4-XFBGA, CSPBGA

Kurşunsuz Kodu

yes

Yayın Yılı

2010

Current Supply Max

8μA

Max Supply Current

8μA

Tip

Bipolar Switch, Omnipolar Switch

Parça Durumu

Active
