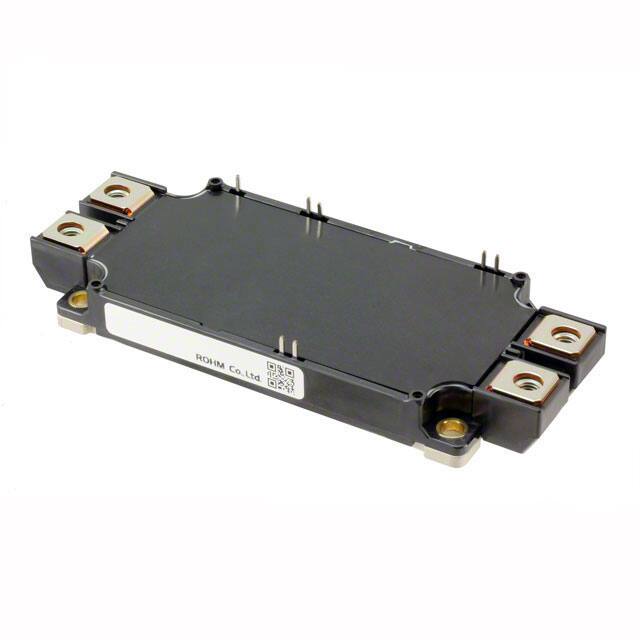

BSM300D12P2E001

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Sayısı

11

Transistor Application

SWITCHING

Vgsth Max Id

4V @ 68mA

Parça Durumu

Active

Montaj Tipi

Chassis Mount

Terminal Pozisyonu

UPPER

Current Continuous Drain Id25

300A Tc

Jesd30 Code

R-XUFM-X11

Fet Technology

METAL-OXIDE SEMICONDUCTOR

Number Of Elements

2

Drain To Source Voltage Vdss

1200V 1.2kV

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Pulsed Drain Currentmax Idm

600A

Operating Mode

ENHANCEMENT MODE

Configuration

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

ECCN Kodu

EAR99

Fet Feature

Silicon Carbide (SiC)

Kılıf / Paket

Module

Max Power Dissipation

1.875kW

Ds Breakdown Voltagemin

1200V

Yayın Yılı

2015

Terminal Formu

UNSPECIFIED

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Çalışma Sıcaklığı

-40°C~150°C TJ

Case Connection

ISOLATED

Power Max

1875W

Fet Type

2 N-Channel (Half Bridge)

REACH Uyumluluk Kodu

not_compliant

Continuous Drain Current Id

300A

Fabrika Tedarik Süresi

25 Weeks

RoHS Durumu

ROHS3 Compliant

Input Capacitance Ciss Max Vds

35000pF @ 10V

Montaj

Surface Mount

Ambalaj

Tray
