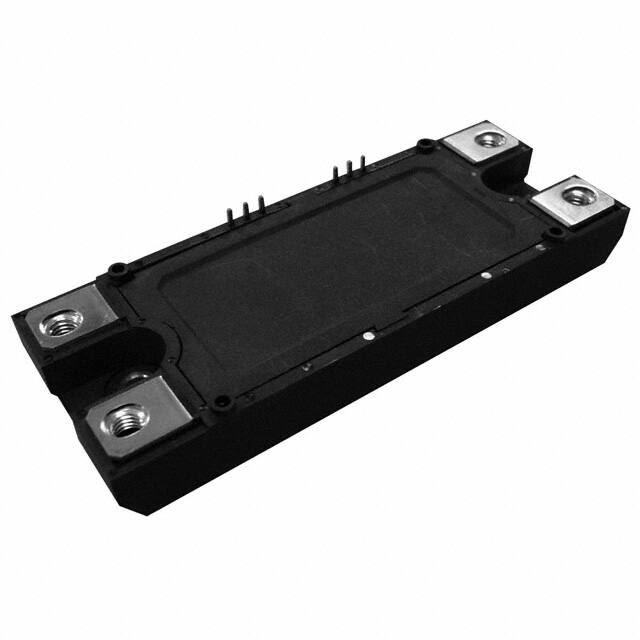

BSM080D12P2C008

Teknik Özellikler

Terminal Pozisyonu

UPPER

Montaj Tipi

Chassis Mount

Current Continuous Drain Id25

80A Tc

Jesd30 Code

R-XUFM-X8

Fet Technology

METAL-OXIDE SEMICONDUCTOR

Drain To Source Voltage Vdss

1200V 1.2kV

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Number Of Elements

2

Pulsed Drain Currentmax Idm

160A

Operating Mode

ENHANCEMENT MODE

Pin Sayısı

10

Yüzey Montaj

NO

Configuration

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Sayısı

8

Transistor Application

SWITCHING

Vgsth Max Id

4V @ 13.2mA

Parça Durumu

Active

Çalışma Sıcaklığı

175°C TJ

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Case Connection

ISOLATED

Fet Type

2 N-Channel (Dual)

REACH Uyumluluk Kodu

not_compliant

Continuous Drain Current Id

80A

Fabrika Tedarik Süresi

25 Weeks

RoHS Durumu

ROHS3 Compliant

Input Capacitance Ciss Max Vds

800pF @ 10V

Ambalaj

Tray

Fet Feature

Silicon Carbide (SiC)

ECCN Kodu

EAR99

Kılıf / Paket

Module

Max Power Dissipation

600W

Ds Breakdown Voltagemin

1200V

Terminal Formu

UNSPECIFIED
