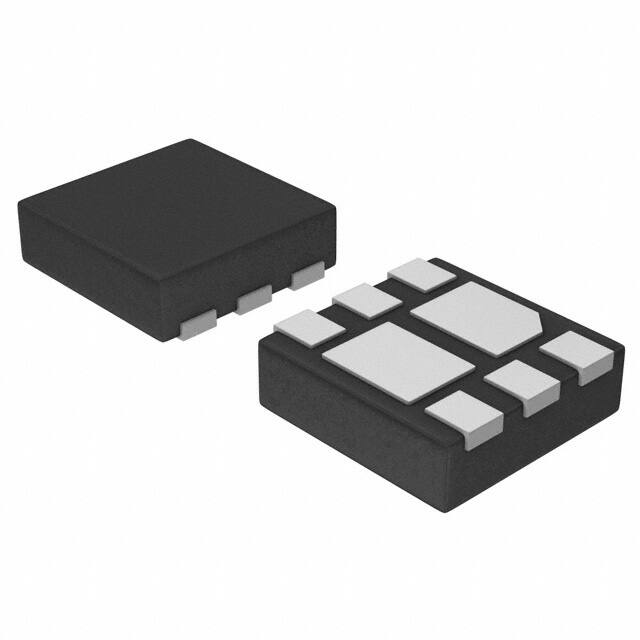

NTLUD3191PZTBG

Teknik Özellikler

Number Of Elements

2

Drain To Source Breakdown Voltage

-20V

Montaj Tipi

Surface Mount

Power Dissipation

500mW

Kılıf / Paket

6-UFDFN Exposed Pad

Power Max

500mW

Yüzey Montaj

YES

Element Configuration

Dual

Operating Mode

ENHANCEMENT MODE

Çalışma Sıcaklığı

-55°C~150°C TJ

Jesd30 Code

S-PDSO-N6

Transistor Application

SWITCHING

Rds On Max Id Vgs

250m Ω @ 1.5A, 4.5V

Fet Technology

METAL-OXIDE SEMICONDUCTOR

Current Continuous Drain Id25

1.1A

Gate Charge Qg Max Vgs

3.5nC @ 4.5V

Configuration

SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

Gate To Source Voltage Vgs

8V

ECCN Kodu

EAR99

Drain To Source Voltage Vdss

20V

Transistor Element Material

SILICON

Qualification Status

COMMERCIAL

Case Connection

DRAIN

JESD-609 Kodu

e3

Drain Currentmax Abs Id

1.1A

Yayın Yılı

2009

Pin Sayısı

6

Fet Type

2 P-Channel (Dual)

Turn Off Delay Time

68 ns

Terminal Kaplaması

MATTE TIN

Kurşunsuz

Lead Free

Input Capacitance Ciss Max Vds

160pF @ 10V

Continuous Drain Current Id

-1A

Parça Durumu

Obsolete

Kurşunsuz Kodu

yes

Lifecycle Status

LAST SHIPMENTS (Last Updated: 19 hours ago)

Nem Hassasiyeti (MSL)

1 (Unlimited)

REACH Uyumluluk Kodu

unknown

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Ds Breakdown Voltagemin

20V
