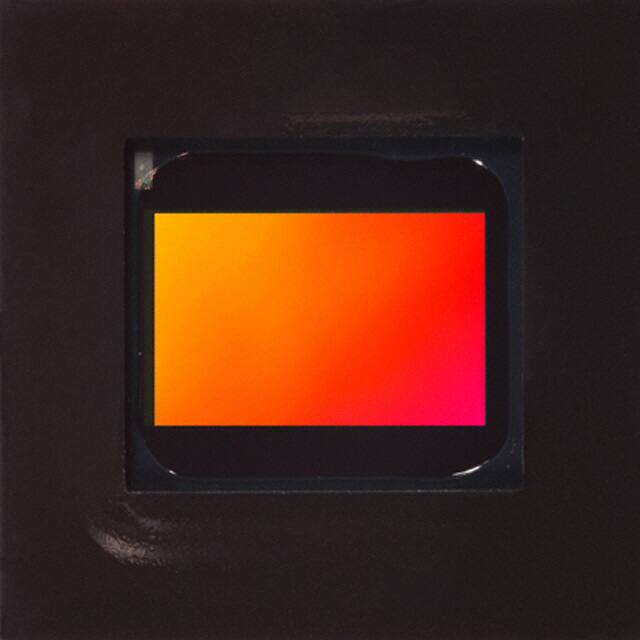

MT9V022IA7ATM

Teknik Özellikler

Supply Voltagemin Vsup

3V

Horizontal Pixel Count

752

Supply Voltagemax Vsup

3.6V

Termination Type

SOLDER

Sensorstransducers Type

IMAGE SENSOR,CMOS

Parça Durumu

Obsolete

Besleme Gerilimi

3.3V

Operating Temperature Max

85°C

Çıkış Tipi

DIGITAL CURRENT

Body Height

1.3mm

Dynamic Range

54.4 dB

Ambalaj

Tray

Operating Currentmax

60mA

Seri

DigitalClarity®

Mounting Feature

SURFACE MOUNT

Yüzey Montaj

YES

Master Clock

26.6 MHz

Tedarikçi Cihaz Paketi

52-IBGA (9x9)

RoHS Durumu

Non-RoHS Compliant

Array Type

FRAME

Frames Per Second

60

Vertical Pixel

480

Body Length Or Diameter

9mm

Body Breadth

9 mm

REACH Uyumluluk Kodu

compliant

Additional Feature

IT ALSO OPERATES AT ANALOG SUPPLY VOLTAGE 3-3.60 V, IT ALSO HAVE DYNAMIC RANGE 80DB-100DB IN HIDY MODE

Kılıf / Paket

52-LBGA Module

JESD-609 Kodu

e1

Pixel Size

6μmx6μm

Operating Temperature Min

-40°C

Nem Hassasiyeti (MSL)

6 (Time on Label)

Output Interface Type

2-WIRE INTERFACE

Frame Rate

60 fps

Optical Format

1/3 inch

Data Rate

27 Mbps

Output Range

-9-9mA

Fabrika Tedarik Süresi

[object Object]

Terminal Kaplaması

TIN SILVER COPPER

Active Pixel Array

752H x 480V

Tip

CMOS
