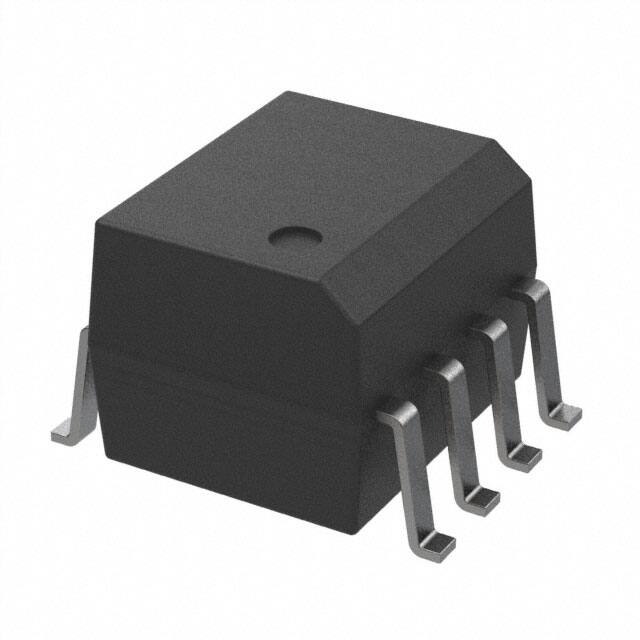

MOCD207D2M

Teknik Özellikler

Rise Time

1.6μs

Voltage Forward Vf Typ

1.25V

Max Output Voltage

70V

Radyasyon Dayanımı

No

Paket

Bulk

Collector Emitter Voltage Vceo

70V

Vce Saturation Max

400mV

Forward Current

60mA

Max Collector Current

150mA

Power Dissipation

250mW

Ambalaj

Tape & Reel (TR)

Number Of Channels

2

Current Transfer Ratio Max

200% @ 10mA

Max Input Current

60mA

Çalışma Sıcaklığı

-40°C~100°C

Pin Sayısı

8

Turn On Turn Off Time Typ

7.5μs, 5.7μs

Current Output Channel

150mA

Giriş Tipi

DC

Montaj

Surface Mount

Reverse Breakdown Voltage

6V

Fabrika Tedarik Süresi

5 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Rise Fall Time Typ

3.2μs 4.7μs

Kılıf / Paket

8-SOIC (0.154, 3.90mm Width)

Voltage Output Max

70V

Montaj Tipi

Surface Mount

Voltage Isolation

2500Vrms

RoHS Durumu

ROHS3 Compliant

Output Current Per Channel

150mA

Fall Time Typ

2.2 μs

Ürün Durumu

Obsolete

Tedarikçi Cihaz Paketi

8-SOIC

Çıkış Tipi

Transistor

Collectoremitter Saturation Voltage

400mV

Current Dc Forward If Max

60mA

Parça Durumu

Obsolete

Current Transfer Ratiomin

100% @ 10mA

Max Power Dissipation

150mW
