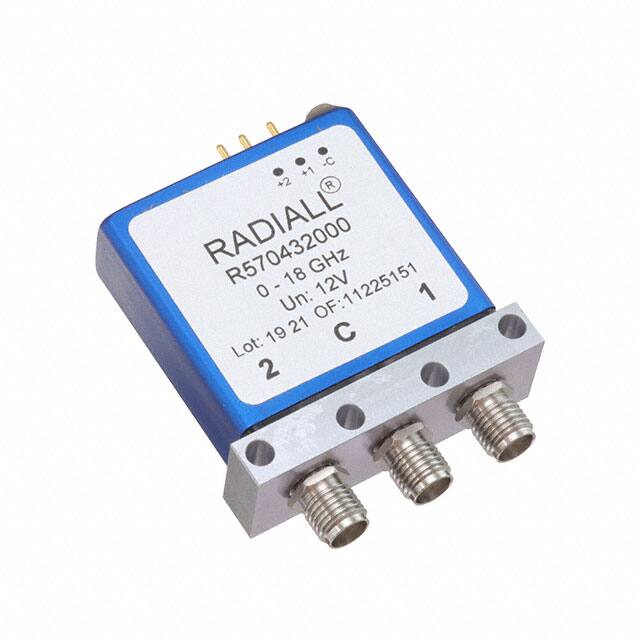

R570432000

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Relay Action

LATCHED

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Isolation

60dB (min)

Additional Feature

SMA, BUILT-IN INDICATOR

Coil Voltagedcmax

12V

Relay Type

RF COAXIAL RELAY

Test Frequency

18GHz

ECCN Kodu

EAR99

Kılıf / Paket

Module, SMA Connectors

Empedans

50Ohm

Circuit

SPDT

Coil Power

2520mW

Electricallife

10000000 Cycle(s)

Frequency Range

DC~18GHz

Termination Type

SOLDER/CONNECTOR

Coilinput Supply Type

DC

Yayın Yılı

2008

Rf Type

General Purpose

Yüzey Montaj

NO

Mounting Feature

PANEL MOUNT

Body Height

55mm

Body Length Or Diameter

57.15mm

Coil Currentdcmax

0.21A

Switching Time

10 ms

Besleme Gerilimi

10.2V~13V

Insertion Loss

0.35dB (Max)

Vswr

1.5

Coilresistance

58Ohm

Operating Frequency Max

18000MHz

Çalışma Sıcaklığı

-40°C~85°C
