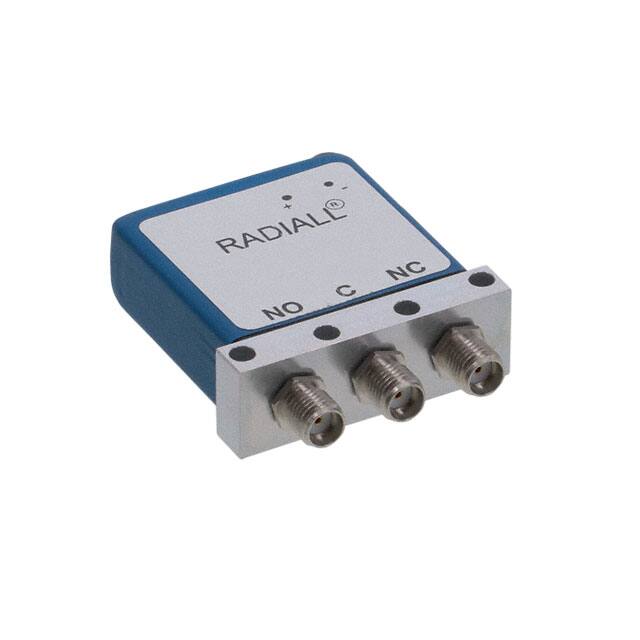

R570313000

Teknik Özellikler

Body Breadth

12.85 mm

Mounting Feature

PANEL MOUNT

Radyasyon Dayanımı

No

Body Height

38.8mm

Input Powermax Cw

240W

Yüzey Montaj

NO

Sealing

SPLASH PROOF

Çalışma Sıcaklığı

-40°C~85°C

Operating Supply Voltage

28V

Body Length Or Diameter

38.1mm

Coil Currentdcmax

0.102A

Coilresistance

274.51Ohm

Insertion Loss Db

0.2 dB

Vswr

1.1

Insertion Loss

0.15dB (Max)

Switching Time

10 ms

Besleme Gerilimi

24V~30V

Relay Type

RF COAXIAL RELAY

Coil Voltagedcmax

30V

Ambalaj

Bulk

Additional Feature

SMA, BUILT-IN INDICATOR

Kılıf / Paket

Module, SMA Connectors

ECCN Kodu

EAR99

Relay Form

1 FORM C

Physical Dimension

38.1mm X 12.85mm X 38.8mm

RoHS Durumu

RoHS Compliant

Relay Action

FAILSAFE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Isolation

80dB (Min)

Parça Durumu

Active

Fabrika Tedarik Süresi

7 Weeks

Coilinput Supply Type

DC

Termination Type

SOLDER/CONNECTOR

Frequency Range

DC~3GHz

Rf Type

General Purpose

Coil Power

2860mW

Coil Operate Voltagedc

24V

Coil Voltage

28V

Empedans

50Ohm

Circuit

SPDT
