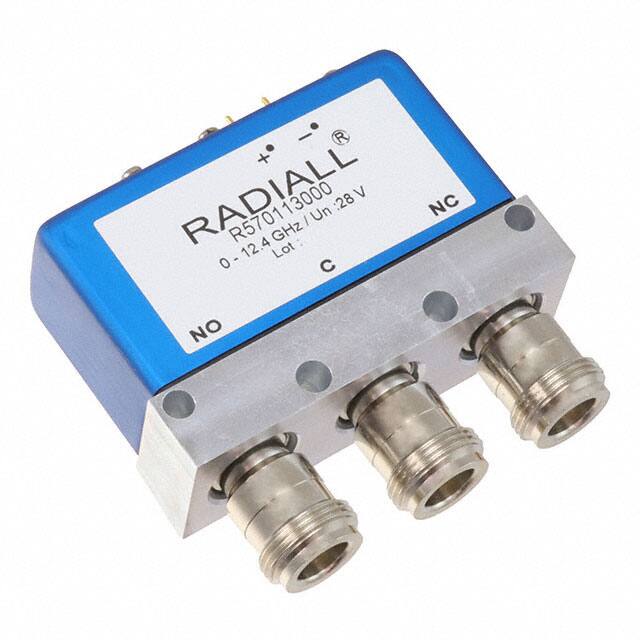

R570113000

Teknik Özellikler

Circuit

SPDT

Parça Durumu

Active

Body Length Or Diameter

101.6mm

Switching Time

15 ms

Additional Feature

BUILT-IN INDICATOR

Terminal

Solder

Frequency Range

DC~12.4GHz

Kılıf / Paket

Module

Coil Power

2856mW

Insertion Loss Db

0.4 dB

Fabrika Tedarik Süresi

8 Weeks

Coilresistance

274.51Ohm

Insertion Loss

0.5dB (max)

Yüzey Montaj

NO

Empedans

50Ohm

Besleme Gerilimi

24V~30V

Relay Function

SP10T

Coil Currentdcmax

0.102A

Vswr

1.5

Relay Action

MOMENTARY

Nem Hassasiyeti (MSL)

1 (Unlimited)

Relay Type

RF COAXIAL RELAY

Frekans

12.4GHz

Rf Type

General Purpose

Coilinput Supply Type

DC

Coil Voltage Dc

28V

Body Height

56mm

Pozisyon Sayısı

3

RoHS Durumu

RoHS Compliant

ECCN Kodu

EAR99

Electricallife

2000000 Cycle(s)

Yayın Yılı

2008

Çalışma Sıcaklığı

-40°C~85°C

Mounting Feature

PANEL MOUNT

Isolation

60dB (min)
