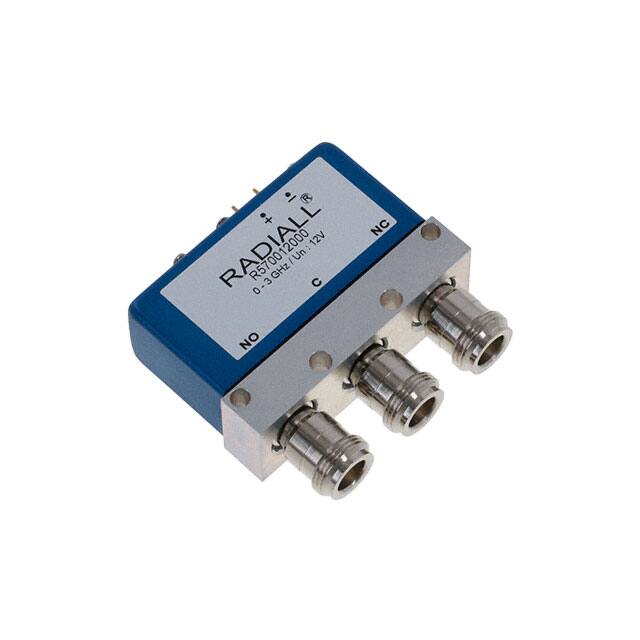

R570012000

Teknik Özellikler

ECCN Kodu

EAR99

Electricallife

2000000 Cycle(s)

RoHS Durumu

RoHS Compliant

Isolation

75dB (Min)

Mounting Feature

PANEL MOUNT

Çalışma Sıcaklığı

-40°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Relay Action

MOMENTARY

Body Height

56mm

Rf Type

General Purpose

Coilinput Supply Type

DC

Frekans

3GHz

Relay Type

RF COAXIAL RELAY

Yüzey Montaj

NO

Insertion Loss

0.25dB (Max)

Empedans

50Ohm

Besleme Gerilimi

10.2V~13V

Insertion Loss Db

0.25 dB

Fabrika Tedarik Süresi

10 Weeks

Coilresistance

48Ohm

Operating Supply Voltage

12V

Vswr

1.3

Coil Currentdcmax

0.25A

Radyasyon Dayanımı

No

Relay Function

SP10T

Switching Time

15 ms

Additional Feature

BUILT-IN INDICATOR

Body Length Or Diameter

101.6mm

Parça Durumu

Active

Termination Type

SOLDER/CONNECTOR

Circuit

SPDT

Coil Power

3000mW

Frequency Range

DC~3GHz

Kılıf / Paket

Module

Ambalaj

Bulk
