Adet bazlı fiyat
- 1+ adet$5.99
- 10+ adet$5.65
- 100+ adet$5.33
- 500+ adet$5.03
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Montaj Tipi
- Panel Mount
- Option
- GENERAL PURPOSE
- Contact Termination
- Solder Cup
- Voltage Rated Ac
- 500V
- Mating Cycles
- 500
- Insulation Resistance
- 5GOhm
- JESD-609 Kodu
- e4
- Housing Color
- Silver
- Bodyshell Style
- RECEPTACLE
- Shield Termination
- Solder
- Connector Style
- BNC
- Center Contact Material
- Beryllium Copper
- Insulation Materials
- Polytetrafluoroethylene
- Kılıf / Paket
- SMD/SMT
- Depth
- 12.7mm
- Reach Svhc
- Unknown
- Din Conformance
- NO
- Additional Feature
- CAPTIVE CENTER CONTACT
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Fabrika Tedarik Süresi
- 12 Weeks
- Kurşunsuz Kodu
- yes
- Yayın Yılı
- 2004
- Includes

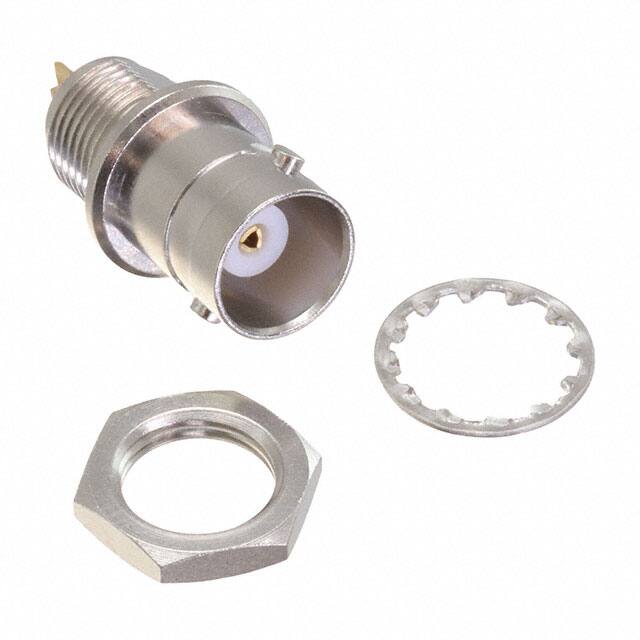

- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- RoHS Durumu
- RoHS Compliant
- Fastening Type
- Bayonet Lock
- Ambalaj
- Bulk
- Mating Information
- MULTIPLE MATING PARTS AVAILABLE
- Contact Materials
- Copper
- Empedans
- 50Ohm
- Connector Type
- Jack, Female Socket
- Orientation
- Straight
- Radyasyon Dayanımı
- No
- Iec Conformance
- NO
- Center Contact Plating
- Gold
- Frekans
- 4GHz
- Mounting Feature
- Bulkhead - Rear Side Nut
- Number Of Ports
- 1
- Body Material
- Brass
- Uzunluk
- 27mm
- Mil Conformance
- NO
