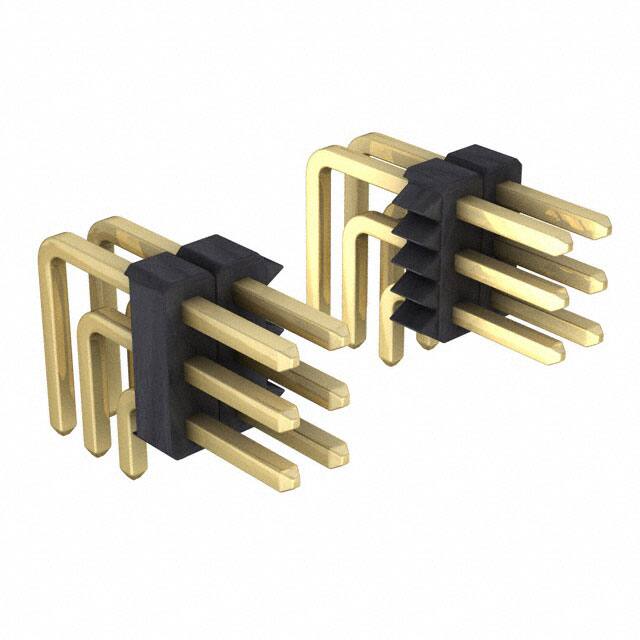

894-70-081-20-001101

Teknik Özellikler

Number Of Pcb Rows

3

Number Of Conductors

ONE

Insulation Color

Black

Contact Finish Mating

Gold

Body Breadth

0.1 inch

Ambalaj

Bulk

RoHS Durumu

ROHS3 Compliant

Contact Lengthmating

0.236 6.00mm

Contact Materials

Brass

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

10 Weeks

Dielectric Withstanding Voltage

1400VAC V

Contact Type

Male Pin

Contact Finish Thickness Mating

Flash

Terminal

Solder

Reliability

COMMERCIAL

Çalışma Sıcaklığı

-55°C~125°C

Current Rating Amps

3A

Montaj

Through Hole

Sıra Sayısı

3

Insulation Resistance

10000000000Ohm

Pitch Mating

0.100 2.54mm

Length Termination

0.118 inch

Pcb Contact Row Spacing

2.54 mm

Pcb Contact Pattern

RECTANGULAR

Row Spacing Mating

0.100 (2.54mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board

Fastening Type

Push-Pull

Seri

894

Contact Shape

Square

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Connector Type

Header

Polarization Key

POLARIZED HOUSING

Pozisyon Sayısı

81

Terminal Adımı

2.54mm

Reference Standard

UL

Yayın Yılı

2012

Contact Length Post

0.118 3.00mm

Mating Contact Pitch

0.1 inch
