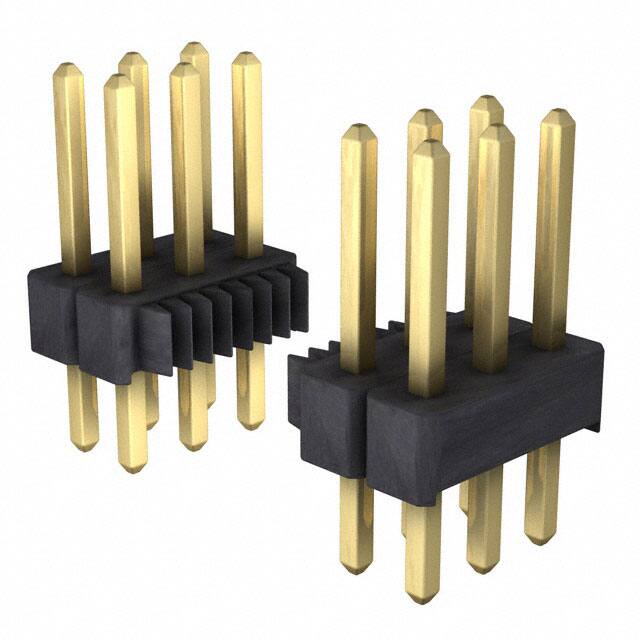

894-70-081-10-002101

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

Flash

Terminal

Solder

Montaj

Through Hole

Current Rating Amps

3A

Sıra Sayısı

3

Pitch Mating

0.100 2.54mm

Insulation Color

Black

Contact Lengthmating

0.276 7.00mm

RoHS Durumu

ROHS3 Compliant

Ambalaj

Bulk

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

10 Weeks

Contact Materials

Brass

Number Of Positions Loaded

All

Contact Type

Male Pin

Contact Length Post

0.118 3.00mm

Yayın Yılı

2012

Material Flammability Rating

UL94 V-0

Nominal Gerilim

150VDC

Montaj Tipi

Through Hole

Insulation Height

0.100 2.54mm

Shrouding

Unshrouded

Parça Durumu

Active

Style

Board to Board

Nem Hassasiyeti (MSL)

1 (Unlimited)

Row Spacing Mating

0.100 (2.54mm)

Contact Shape

Square

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Connector Type

Header

Overall Contact Length

0.494 12.54mm

Fastening Type

Push-Pull

Seri

894

Pozisyon Sayısı

81
