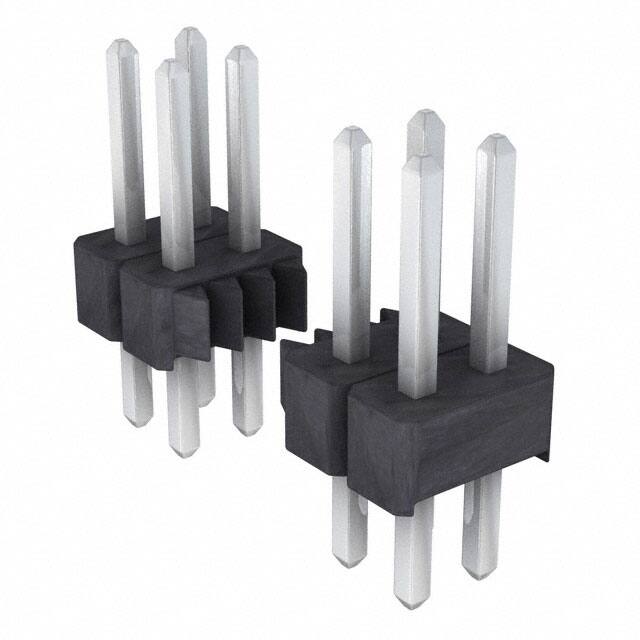

892-80-016-10-001101

Teknik Özellikler

Sıra Sayısı

2

Terminal

Solder

Fabrika Tedarik Süresi

10 Weeks

Din Conformance

NO

Nominal Gerilim

150VDC

Reliability

COMMERCIAL

Row Spacing Mating

0.100 (2.54mm)

Number Of Conductors

ONE

Seri

892

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.122 3.10mm

Pcb Contact Pattern

RECTANGULAR

Contact Type

Male Pin

Style

Board to Board

Durability

100 Cycles

Radyasyon Dayanımı

No

Connector Type

Header

Housing Color

Black

Gender

Male

Ambalaj

Bulk

Rated Current Signal

3A

Insulation Resistance

10000000000Ohm

Overall Contact Length

0.458 11.64mm

Housing Material

Polychlorinated

Pozisyon Sayısı

16

Max Voltage Rating Dc

150V

Yayın Yılı

2012

Pitch Mating

0.100 2.54mm

Contact Lengthmating

0.236 6.00mm

Orientation

Straight

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Number Of Pcb Rows

2

HTS Kodu

8536.69.40.40

Montaj

Through Hole

Insulation Height

0.100 2.54mm

Max Current Rating

3A

Mating Contact Pitch

0.1 inch

Kurşunsuz Kodu

yes

Contact Materials

Brass
