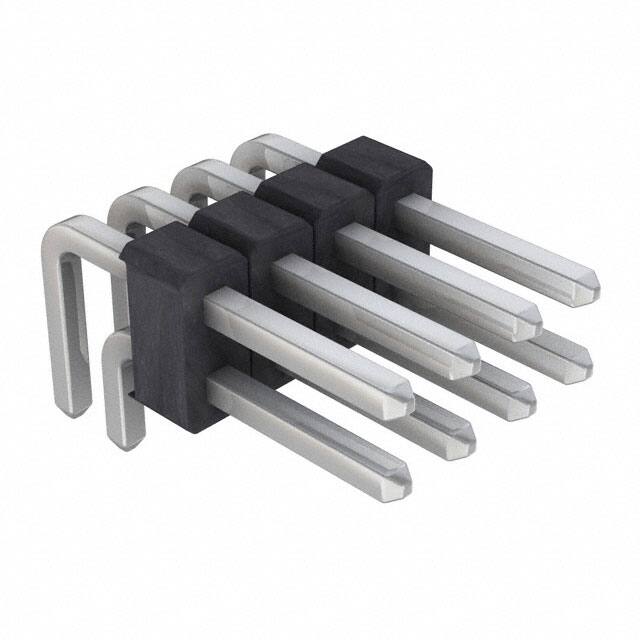

892-80-008-20-002101

Teknik Özellikler

Pitch

2.54mm

Contact Shape

Square

Contact Lengthmating

0.276 7.00mm

Contact Finish Mating

Tin

Pitch Mating

0.100 2.54mm

Current Rating Amps

3A

Yayın Yılı

2012

Pozisyon Sayısı

8

Çalışma Sıcaklığı

-55°C~125°C

Material Flammability Rating

UL94 V-0

Contact Plating

Tin

Parça Durumu

Active

Fastening Type

Push-Pull

RoHS Durumu

ROHS3 Compliant

Shrouding

Unshrouded

Montaj Tipi

Through Hole, Right Angle

Row Spacing Mating

0.100 (2.54mm)

Renk

Black

Contact Materials

Brass

Nominal Gerilim

150VDC

Sıra Sayısı

2

Montaj

Through Hole

Insulation Height

0.200 5.08mm

Terminal

Solder

Fabrika Tedarik Süresi

10 Weeks

Ambalaj

Bulk

Connector Type

Header

Style

Board to Board

Contact Type

Male Pin

Contact Length Post

0.118 3.00mm

Insulation Color

Black

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Number Of Positions Loaded

All

Contact Finish Post

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

892
