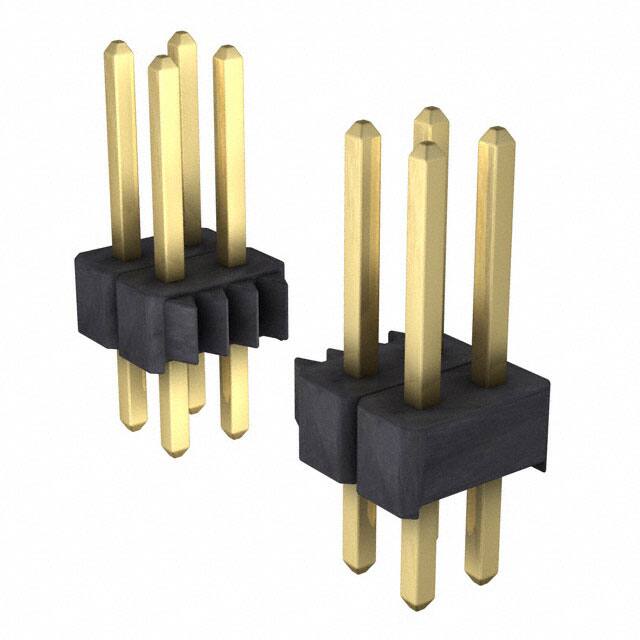

892-70-022-10-002101

Teknik Özellikler

Shrouding

Unshrouded

Fastening Type

Push-Pull

Mixed Contacts

NO

Çalışma Sıcaklığı

-55°C~125°C

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Filter Feature

NO

Contact Finish Thickness Mating

Flash

Uzunluk

27.94mm

Contact Finish Mating

Gold

Reference Standard

UL

Contact Shape

Square

Iec Conformance

NO

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Number Of Positions Loaded

All

JESD-609 Kodu

e4

Dielectric Withstanding Voltage

1400VAC V

Ul Flammability Code

94V-0

Montaj

Through Hole

Insulation Height

0.100 2.54mm

Max Current Rating

3A

Mating Contact Pitch

0.1 inch

Kurşunsuz Kodu

yes

Contact Materials

Brass

Max Voltage Rating Ac

100V

Mil Conformance

NO

Montaj Tipi

Through Hole

Depth

5.08mm

RoHS Durumu

ROHS3 Compliant

Orientation

Straight

Parça Durumu

Active

Max Voltage Rating Dc

150V

Pozisyon Sayısı

22

Housing Material

Polyamide

Yayın Yılı

2011

Pitch Mating

0.100 2.54mm

Contact Lengthmating

0.276 7.00mm

Number Of Conductors

ONE

Seri

892

Nem Hassasiyeti (MSL)

1 (Unlimited)
