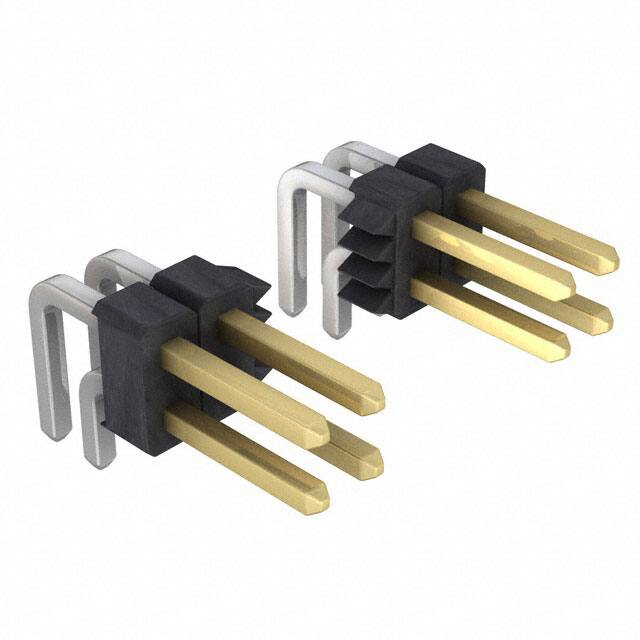

892-18-040-20-002101

Teknik Özellikler

Row Spacing Mating

0.100 (2.54mm)

Montaj Tipi

Through Hole, Right Angle

Montaj

Through Hole

Insulation Height

0.200 5.08mm

Terminal

Solder

Fabrika Tedarik Süresi

10 Weeks

Sıra Sayısı

2

Contact Materials

Brass

Nominal Gerilim

150VDC

Connector Type

Header

Ambalaj

Bulk

Seri

892

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Post

Tin

Number Of Positions Loaded

All

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Insulation Color

Black

Contact Type

Male Pin

Contact Length Post

0.118 3.00mm

Style

Board to Board

Contact Finish Mating

Gold

Contact Lengthmating

0.276 7.00mm

Contact Shape

Square

Pozisyon Sayısı

40

Contact Finish Thickness Mating

10.0μin 0.25μm

Yayın Yılı

2012

Current Rating Amps

3A

Pitch Mating

0.100 2.54mm

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-55°C~125°C

RoHS Durumu

ROHS3 Compliant

Shrouding

Unshrouded

Fastening Type

Push-Pull
