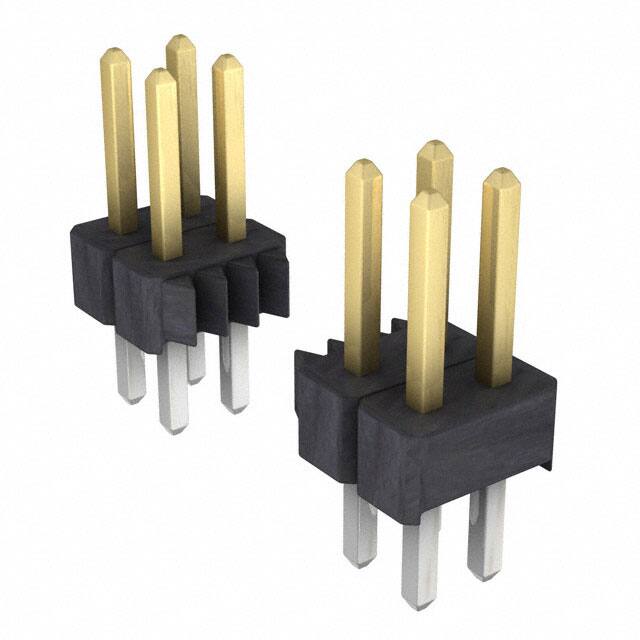

892-18-010-10-001101

Teknik Özellikler

Depth

5.08mm

Montaj Tipi

Through Hole

Mil Conformance

NO

Contact Materials

Brass

Max Voltage Rating Ac

100V

Kurşunsuz Kodu

yes

Mating Contact Pitch

0.1 inch

Max Current Rating

3A

Montaj

Through Hole

Insulation Height

0.100 2.54mm

HTS Kodu

8536.69.40.40

Ul Flammability Code

94V-0

Dielectric Withstanding Voltage

1400VAC V

JESD-609 Kodu

e3

Number Of Positions Loaded

All

Contact Finish Post

Tin

ECCN Kodu

EAR99

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Iec Conformance

NO

Contact Shape

Square

Reference Standard

UL

Contact Finish Mating

Gold

Uzunluk

12.7mm

Contact Finish Thickness Mating

10.0μin 0.25μm

Filter Feature

NO

Option

GENERAL PURPOSE

Çalışma Sıcaklığı

-55°C~125°C

Material Flammability Rating

UL94 V-0

Mixed Contacts

NO

Fastening Type

Push-Pull

Shrouding

Unshrouded

Row Spacing Mating

0.100 (2.54mm)

Reliability

COMMERCIAL

Nominal Gerilim

150VDC

Din Conformance

NO

Terminal

Solder

Fabrika Tedarik Süresi

10 Weeks

Sıra Sayısı

2

Overall Contact Length

0.458 11.64mm

Rated Current Signal

3A
