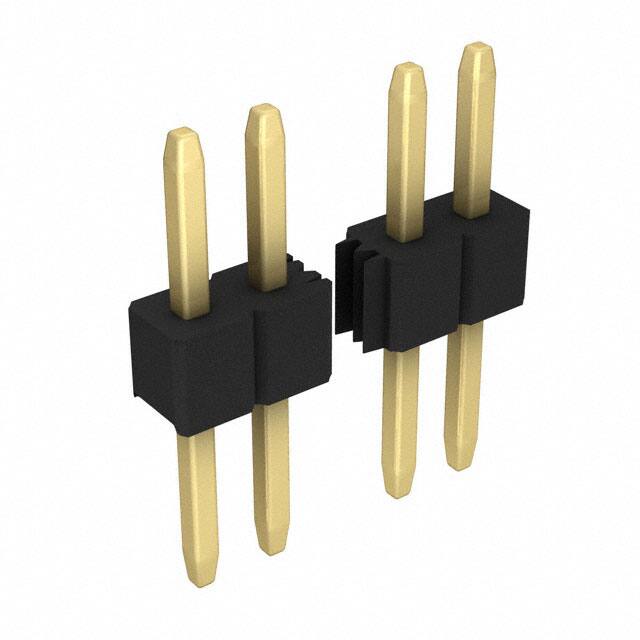

890-70-034-10-003101

Teknik Özellikler

Option

GENERAL PURPOSE

Contact Finish Thickness Mating

Flash

Ul Flammability Code

94V-0

Housing Material

Polyamide

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Overall Contact Length

0.553 14.04mm

Fastening Type

Push-Pull

Shrouding

Unshrouded

Terminal

Solder

Sıra Sayısı

1

Orientation

Straight

Style

Board to Board

Max Voltage Rating Ac

100V

Contact Materials

Brass

Housing Color

Black

Pozisyon Sayısı

34

Pcb Contact Pattern

RECTANGULAR

Connector Type

Header

Gender

Male

Filter Feature

NO

Iec Conformance

NO

Mixed Contacts

NO

Uzunluk

86.36mm

Mil Conformance

NO

Din Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Montaj

Through Hole

JESD-609 Kodu

e4

Insulation Height

0.100 2.54mm

HTS Kodu

8536.69.40.40

Nominal Gerilim

150VDC

Contact Finish Mating

Gold

Reliability

COMMERCIAL

Reference Standard

UL

Çalışma Sıcaklığı

-55°C~125°C

Max Current Rating

3A

Pitch Mating

0.100 2.54mm

RoHS Durumu

ROHS3 Compliant
