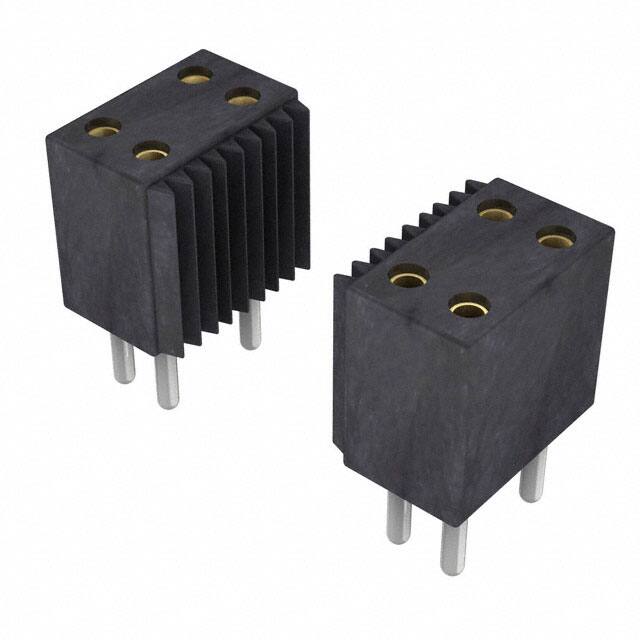

853-87-036-10-002101

Teknik Özellikler

REACH Uyumluluk Kodu

unknown

RoHS Durumu

ROHS3 Compliant

Pitch Mating

0.050 1.27mm

Body Breadth

0.174 inch

Seri

853

Row Spacing Mating

0.100 (2.54mm)

Polarization Key

POLARIZED HOUSING

Body Length Or Diameter

0.916 inch

Number Of Pcb Rows

2

Fastening Type

Push-Pull

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Parça Durumu

Active

Mating Contact Pitch

0.05 inch

Montaj

Through Hole

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Length Termination

0.094 inch

Contact Shape

Circular

Number Of Conductors

ONE

Montaj Tipi

Through Hole

Insulation Color

Black

Contact Materials

Beryllium Copper

Pcb Contact Pattern

RECTANGULAR

Durability

500 Cycles

Ambalaj

Bulk

Çalışma Sıcaklığı

-55°C~125°C

Contact Length Post

0.094 2.40mm

Style

Board to Board

Reference Standard

UL

Contact Type

Female Socket

Body Depth

0.157 inch

Pozisyon Sayısı

36

Number Of Positions Loaded

All

Sıra Sayısı

2

Yayın Yılı

2012

Insulation Resistance

10000000000Ohm

Current Rating Amps

1A

Fabrika Tedarik Süresi

10 Weeks

Insulation Height

0.157 4.00mm

Connector Type

Socket
