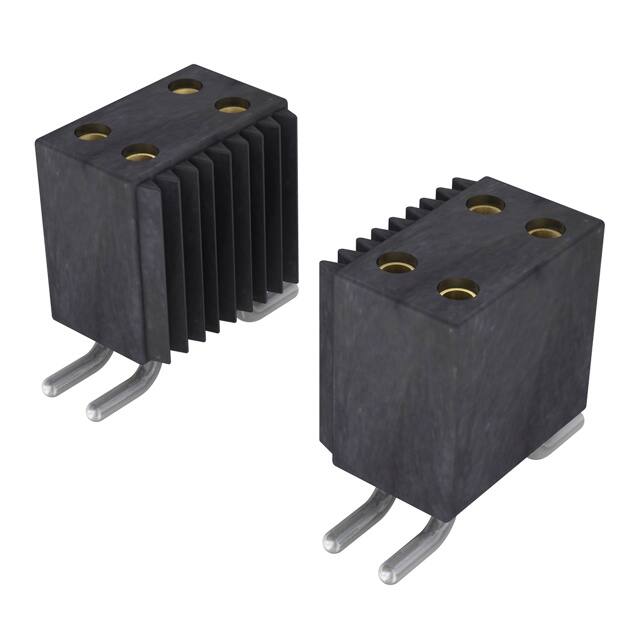

853-87-010-30-002101

Teknik Özellikler

Ambalaj

Bulk

Çalışma Sıcaklığı

-55°C~125°C

Style

Board to Board

Reference Standard

UL

Contact Type

Female Socket

Number Of Positions Loaded

All

Sıra Sayısı

2

Pozisyon Sayısı

10

Yayın Yılı

2012

Current Rating Amps

1A

Insulation Height

0.203 5.16mm

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Thickness Mating

Flash

Connector Type

Socket

Contact Finish Post

Tin

Contact Finish Mating

Gold

Dielectric Withstanding Voltage

700VAC V

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

RoHS Durumu

ROHS3 Compliant

REACH Uyumluluk Kodu

unknown

Body Breadth

0.174 inch

Pitch Mating

0.050 1.27mm

Seri

853

Row Spacing Mating

0.100 (2.54mm)

Polarization Key

POLARIZED HOUSING

Fastening Type

Push-Pull

Number Of Pcb Rows

2

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Parça Durumu

Active

Mating Contact Pitch

0.05 inch

Total Number Of Contacts

10

Montaj

Surface Mount

Pcb Contact Row Spacing

4.4958 mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Contact Materials

Beryllium Copper

Insulation Color

Black

Montaj Tipi

Surface Mount

Number Of Conductors

ONE
