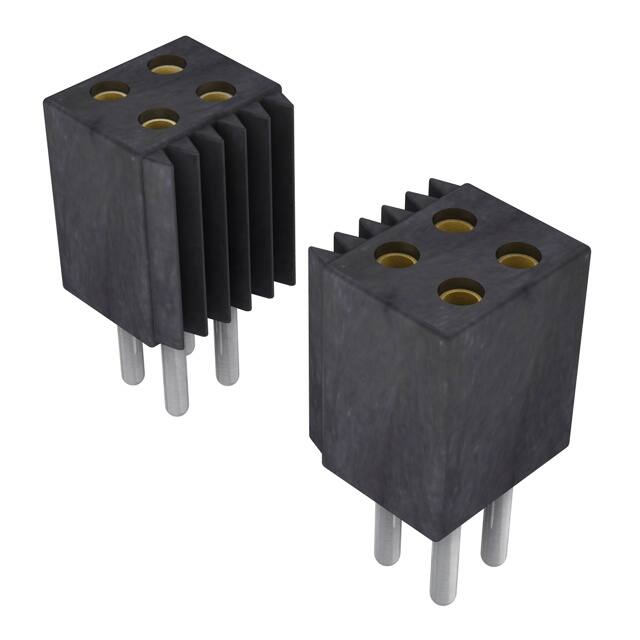

853-83-050-10-001101

Teknik Özellikler

Reference Standard

UL

Çalışma Sıcaklığı

-55°C~125°C

Housing Material

Polychlorinated

Insulation Height

0.157 4.00mm

Dielectric Withstanding Voltage

700VAC V

Plating Thickness

30μin

Contact Finish Post

Tin

Pitch Mating

0.050 1.27mm

Max Voltage Rating Ac

100V

Polarization Key

POLARIZED HOUSING

Fastening Type

Push-Pull

Number Of Pcb Rows

2

Terminal

Solder

Max Current Rating

1A

Contact Resistance

20mOhm

Contact Materials

Beryllium Copper

Depth

3.25mm

Number Of Conductors

ONE

ECCN Kodu

EAR99

Pcb Contact Pattern

RECTANGULAR

Style

Board to Board

Contact Length Post

0.094 2.40mm

Ambalaj

Bulk

Uzunluk

32.16mm

Contact Type

Female Socket

Sıra Sayısı

2

Number Of Positions Loaded

All

Pozisyon Sayısı

50

Insulation Resistance

10000000000Ohm

Housing Color

Black

Orientation

Straight

Fabrika Tedarik Süresi

10 Weeks

Yayın Yılı

2012

JESD-609 Kodu

e3

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

29.5μin 0.75μm

Connector Type

Socket

Contact Finish Mating

Gold

Seri

853
