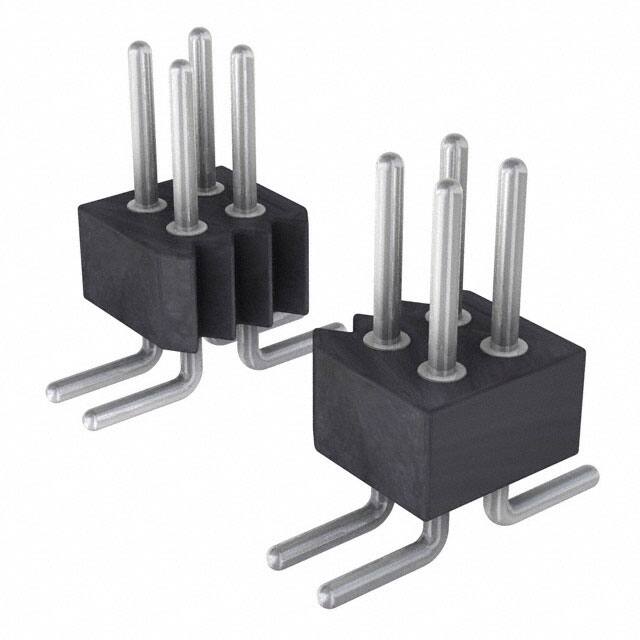

852-80-040-30-001101

Teknik Özellikler

Row Spacing Mating

0.050 (1.27mm)

Reference Standard

UL

Current Rating Amps

1A

Contact Type

Male Pin

Contact Shape

Circular

Reliability

COMMERCIAL

Montaj Tipi

Surface Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

Header

Body Length Or Diameter

1.016 inch

Shrouding

Unshrouded

Pcb Contact Row Spacing

4.0386 mm

Fabrika Tedarik Süresi

10 Weeks

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Fastening Type

Push-Pull

Montaj

Surface Mount

Number Of Positions Loaded

All

Number Of Conductors

ONE

Material Flammability Rating

UL94 V-0

Contact Lengthmating

0.118 3.00mm

Yayın Yılı

2012

Çalışma Sıcaklığı

-55°C~125°C

Sıra Sayısı

2

Mating Contact Pitch

0.05 inch

Nominal Gerilim

150VDC

Insulation Resistance

10000000000Ohm

Number Of Pcb Rows

2

Durability

500 Cycles

Insulation Color

Black

Seri

852

Style

Board to Board

Total Number Of Contacts

40

Pozisyon Sayısı

40

Contact Finish Mating

Tin

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Insulation Height

0.075 1.90mm

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.050 1.27mm

Contact Materials

Brass
